GB T554-96 Type D Single Cross Bollard
Our type D single cross bollard is strictly designed according to national industrial standard GB/T 554-96. It has three nominal size: 50mm, 75mm, 100mm. We also supply other types of GB/T 554-96 bollards and customized products to meet customer¡¯s special application. For more information, please feel free to contact us.
Features of GB T554-96 Type D Single Cross Bollard
1. Type: single cross bollard
2. Standard: GB/T 554-96;
3. Nominal Diameter: 50mm,75mm,100mm;
4. Weight: 2.8kg, 8.0kg, 15kg;
5. Bolts Quantity: 4;
6. Material: cast steel, cast iron, ductile iron;
7. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
8. Certificate: CCS,ABS, BV, LR etc.

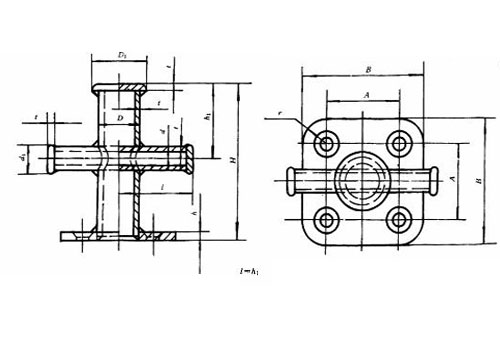

Drawing of GB T554-96 Type D Single Cross Bollard
Unit:mm
Nominal Dia. |
Wire Rope Max. Dia. |
Hemp Rope Max. Dia. |
Synthetic Carbon Fiber Rope Max. Dia. |
D |
D1 |
B |
H |
h |
h1 |
t |
d |
d1 |
r |
A |
Screws |
Weight(kg) |
|
Screw Thread Dia. |
Quantity(piece) |
||||||||||||||||
50 |
8.7 |
75 |
16 |
50 |
65 |
135 |
190 |
8 |
85 |
6 |
25 |
35 |
25 |
85 |
M16 |
4 |
2.8 |
75 |
11.5 |
90 |
20 |
75 |
75 |
185 |
290 |
12 |
135 |
7 |
42 |
52 |
35 |
115 |
M22 |
4 |
8.0 |
100 |
13.5 |
100 |
24 |
100 |
100 |
235 |
350 |
18 |
160 |
7 |
50 |
65 |
40 |
155 |
M27 |
4 |
15 |
