GB T554-96 Type C Simple Bollard

GB T554-96 Type C Simple Bollard

We supply five types of standard GB/T 554-96 bollard: type A, type B inserted bollard, type C simple bolllard, type D single cross bollard, type E double cross bollard. All our bollards are produced in line with the industrial standard and get the approval of China Classification Society. If you have special requirements about the bollards, we can do it as well. For more information, please email us.

Features of GB T554-96 Type C Simple Bollard

1. Double bitts bollard;

2. Standard: GB/T 554-96;

3. Nominal Diameter: 50mm, 75mm,100mm,125mm,150mm;

4. Weight: 4.5 to 49.0kg;

5. Applicable ropes: wire rope, hemp rope, synthetic fiber rope;

6. Material type: cast steel, cast iron, ductile iron;

7. Surface: polished,galvanized

8. Get approval of CCS, ABS etc.;

9. Can be customized.

GB T554-96 Type C Simple Bollard

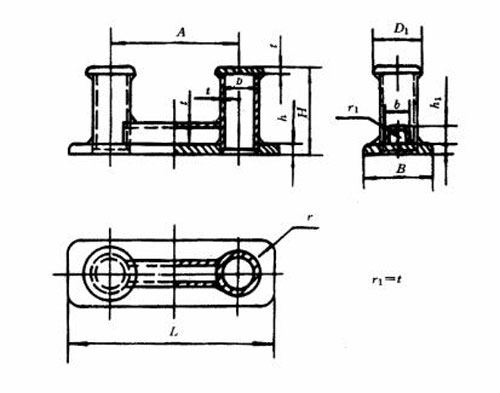

Drawing of GB T554-96 Type C Simple Bollard

Unit:mm

Nominal Dia.

Steel Rope Max. Dia.

Hemp Rope Max. Dia.

Synthetic Carbon Fiber Rope Max. Dia.

D

D1

L

A

B

H

h

h1

t

b

r

Weight(kg)

50

8.7

75

16

50

65

310

180

100

115

9

26

6

32

20

4.5

75

11.5

90

20

75

95

430

275

125

170

12

43

7

50

20

10.8

100

13.5

100

24

100

120

540

350

160

220

14

51

7

65

25

18.6

125

15.5

125

28

125

145

676

430

200

275

15

60

9

80

28

34.3

150

17.5

150

30

150

170

800

500

230

330

16

70

9

100

35

49.0
