R type dock bollard
[Search Related Products]
Features of R type Dock Bollard
1. Material: cast steel, cast iron;ductile iron;
2. Quality Guarantee: 1 year;
3. Working Time: 10 to 15 years;
4. Bollard Capacity: 10 to 200 tonnes;
5. Finish: epoxy paint or as customer request;
6. High anti-corrosion, stable performance;
7. Certificate: ABS,CCS,BV,LR etc.;
8. Customized products are available.

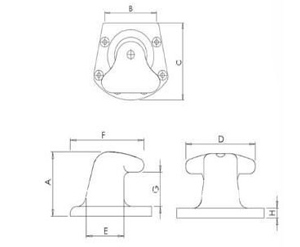

Drawing of R type Dock Bollard
R type dock bollard |
||||||||||
Product No. | Bolts Qty | Capacity (Tonnes) | Dimensions(mm) | |||||||
A | B | C | D | E | F | G | H | |||
R-001 | 4 | 10 | 200 | 216 | 236 | 160 | 106 | 218 | 120 | 32 |
R-002 | 4 | 25 | 245 | 350 | 305 | 250 | 150 | 285 | 127 | 45 |
R-003 | 5 | 30 | 290 | 430 | 410 | 360 | 190 | 360 | 150 | 45 |
R-004 | 5 | 50 | 365 | 550 | 540 | 430 | 250 | 475 | 200 | 50 |
R-005 | 5 | 75 | 430 | 650 | 650 | 520 | 300 | 570 | 235 | 70 |
R-006 | 5 | 80 | 415 | 518 | 540 | 430 | 250 | 430 | 245 | 55 |
R-007 | 7 | 120 | 490 | 678 | 642 | 600 | 330 | 584 | 290 | 65 |
R-008 | 7 | 200 | 520 | 950 | 780 | 680 | 360 | 670 | 306 | 80 |
R-009 | 7 | 200 | 600 | 950 | 780 | 680 | 360 | 670 | 386 | 80 |
R-010 | 6 | 200 | 656 | 1020 | 930 | 800 | 460 | 830 | 349 | 100 |
