GB T554-96 Type B Inserted Bollard
GB/T 554-96 bollards have five different types bollard. We supply all type of GB/T 554-96 bollard and other standard bollards such as GB/T10106-88 bollard, DIN82607 bollards and so on. Every bollard we produced are of high quality and get the approval of quality inspection center. If you¡¯re interested in our bollards, please feel free to contact us.
Features of GB T554-96 Type B Inserted Bollard
1. Inserted bollard;
2. Standrard: GB/T 554-96;
3. Nominal Diameter: 160mm to 500mm;
4. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
5. Wire rope standard: GB1102-74, tensile strength is 1520N/mm²;
6.1 year warranty;
7. Durable, long lifetime;
8. Certificate: CCS,ABS etc.
9. Can be customized

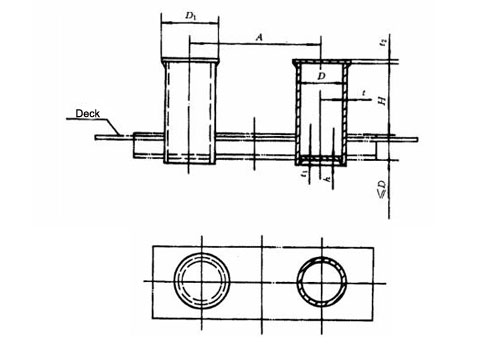

Drawing of GB T554-96 Type B Inserted Bollard
Unit:mm
Nominal Dia. |
Max. Breaking Load KN |
Max. Dia. Of Applicable Rope |
D |
D1 |
A |
tmin |
t1min |
t2 |
h |
H |
|||||
Steel Rope |
Hemp Rope |
Synthetic Carbon Fiber Rope |
|||||||||||||
6¡Á24 |
6¡Á30 |
6¡Á37 |
Deck without Plywood |
Deck with Plywood |
|||||||||||
160 |
49 |
9.3 |
11.0 |
8.7 |
90 |
20 |
168 |
210 |
400 |
10 |
6 |
9 |
8 |
250 |
310 |
200 |
78 |
13.0 |
13.0 |
13.0 |
110 |
110 |
219 |
170 |
500 |
10 |
8 |
9 |
8 |
300 |
360 |
250 |
118 |
15.0 |
17.5 |
15.0 |
130 |
130 |
273 |
335 |
630 |
11 |
10 |
9 |
8 |
380 |
440 |
315 |
196 |
20.5 |
21.5 |
19.5 |
170 |
170 |
325 |
390 |
800 |
15 |
12 |
9 |
10 |
480 |
540 |
355 |
255 |
24.0 |
24.0 |
21.5 |
200 |
200 |
351 |
420 |
890 |
17 |
13 |
12 |
10 |
530 |
590 |
400 |
314 |
26.0 |
28.0 |
24.0 |
235 |
235 |
402 |
480 |
1000 |
18 |
14 |
12 |
10 |
600 |
660 |
450 |
382 |
30.0 |
30.0 |
28.0 |
250 |
250 |
450 |
545 |
1130 |
19 |
16 |
12 |
10 |
680 |
740 |
500 |
451 |
32.0 |
32.5 |
30.0 |
280 |
280 |
500 |
500 |
1250 |
20 |
18 |
12 |
12 |
750 |
810 |
Note: Steel Rope Standard GB1102-74, Tensil Strength 1520N/mm²
