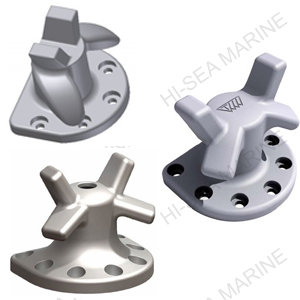

Staghorn type bollard S type
[Search Related Products]
Features of Staghorn type bollard S type
1. Bollard Capacity: 40 to 300 tonnes;
2. Bolts Quantity:5 to 7;
3. Material type: cast steel/iron, ductile iron;
4. 1 year quality warranty;
5. Epoxy coating, polished, galvanized surface;
6. 10 to 20 years working time;
7. Certificate: CCS,ABS,BV,LR etc.
8. Having different types of staghorn bollards;can be customized;

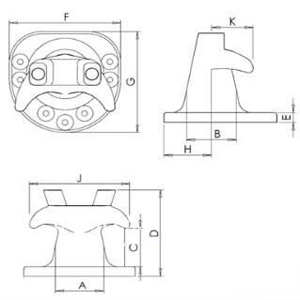

Drawing of Staghorn type Bollard
Product No. | Bolts Qty | Capacity(Tonnes) | Dimensions(mm) | |||||||||
A | B | C | D | E | F | G | H | J | K | |||
S-001 | 5 | 40 | 205 | 205 | 160 | 425 | 50 | 480 | 410 | 165 | 460 | 165 |
S-002 | 5 | 90 | 300 | 300 | 198 | 510 | 70 | 650 | 650 | 280 | 600 | 230 |
S-003 | 7 | 200 | 360 | 360 | 200 | 660 | 100 | 970 | 840 | 356 | 760 | 240 |
S-004 | 6 | 200 | 360 | 360 | 200 | 620 | 80 | 780 | 760 | 356 | 760 | 240 |
S-005 | 7 | 300 | 440 | 440 | 305 | 685 | 85 | 920 | 900 | 380 | 840 | 280 |
