J type dock bollards

Features of J type dock bollards

1. Material: cast steel;

2. Working time: 15 to 20 years;

3. Surface: smooth, polished and galvanized;

4. Bolts quantity: 4,6;

5. Capacity: 10 to 50 tonnes;

6. Color: black, red, grey etc. as customer’s request;

7. 1 year quality warranty;

8. Certificate: CCS,ABS,BV,LR etc.;

9. Custom made according to customer’s drawing

J type dock bollards

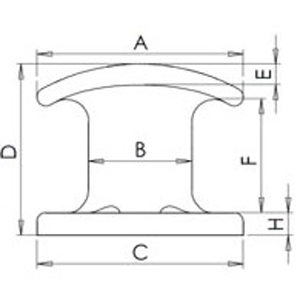

Drawing of J Type Dock Bollard

J type Dock Bollard
Product No.		Bolts Qty	Capacity (Tonnes)	Dimensions(mm)
Product No.		Bolts Qty	Capacity (Tonnes)	A	B	C	D	E	F	G	H
J-001		4	10	180	120	240	190	25	140	180	25
J-002		4	15	215	150	290	220	25	160	220	35
J-003		4	20	280	200	360	260	25	200	280	35
J-004		4	15	290	150	290	220	25	160	220	35
J-005		6	50	460	230	460	380	40	244	340	50

Single Bitt Bollard
Product No.		Bolts Qty	Capacity (Tonnes)	Dimensions(mm)
Product No.		Bolts Qty	Capacity (Tonnes)	A	B	C	D	E	F	G	H
J-001		4	10	180	120	240	190	25	140	180	25
J-002		4	15	215	150	290	220	25	160	220	35
J-003		4	20	280	200	360	260	25	200	280	35
J-004		4	15	290	150	290	220	25	160	220	35
J-005		6	50	460	230	460	380	40	244	340	50
