Ship Cross Bitt
GB 10106-88 ships cross bitts, adopting standard JIS F2804-76 for reference, have two types: type A and type B. Type A ship cross bitts is directly welded on the deck. While type B is welded on the deck liner. Both two types are strictly produced in line with industrial standard. All our bollards get the approval of China Classification Society. If you¡¯re interested in our products, please feel free to contact us for more information.
Features of Ships Cross Bitts
1. Type: Ship¡¯s cross bitts;
2. Nominal Diameters: 150 to 350mm;
3. Three applicable rope types: steel rope, synthetic fiber rope, hemp rope;
4. Industrial Standard: GB 10106-88
5. Material Type: seamless steel/carbon steel;
6. Polished welds, no cracks, warp, skew or any defects that influence function;
7. Get quality certificate by technical inspection department;
8. Surface: bitumen paint;
9. 1 year warranty;
10. Can be customized.

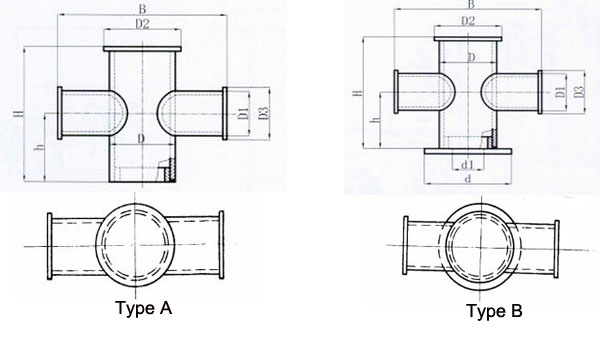

Drawing of Ship Cross Bitt
Unit:mm
Nominal Dia. |
Max. Breaking Load of Applicable Wire KN(tf) |
Max. Dia. Of Applicable Rope |
H |
B |
h |
D |
D1 |
D2 |
D3 |
d |
Weight(kg) |
|||
Steel Rope |
Synthetic Carbon Fiber Rope |
Hemp Rope |
||||||||||||
150 |
117(12) |
13.0 |
30 |
44 |
480 |
460 |
280 |
168 |
114 |
206 |
158 |
240 |
A |
31 |
B |
33 |
|||||||||||||
200 |
225(26) |
19.5 |
45 |
64 |
560 |
520 |
320 |
219 |
168 |
260 |
210 |
280 |
A |
62 |
B |
66 |
|||||||||||||
250 |
382(39) |
26.0 |
56 |
80 |
640 |
610 |
360 |
273 |
219 |
310 |
260 |
340 |
A |
98 |
B |
105 |
|||||||||||||
300 |
549(56) |
30.0 |
70 |
104 |
680 |
660 |
380 |
325 |
273 |
360 |
310 |
400 |
A |
143 |
B |
153 |
|||||||||||||
350 |
686(70) |
34.5 |
77 |
120 |
720 |
720 |
420 |
351 |
273 |
400 |
314 |
440 |
A |
192 |
B |
204 |
