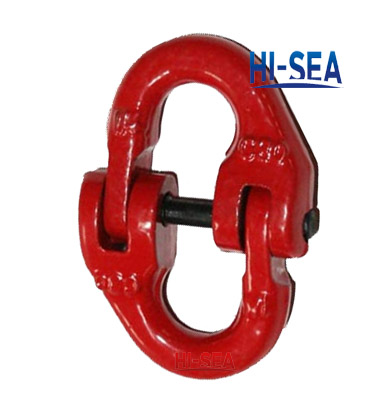

A337 Alloy Steel Connecting Link
A337 alloy steel connecting link are made form quenched and tempered alloy steel for high tensile strength and wear resistance. They can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. The working load limited of it is from 3500 pounds to 723000 pounds. And special specifications and marks can be made according to customers requirement
Product Details:
1. Item: A337 alloy steel connecting link
2. Grade: G80
3. Type: US type
4. Material: Forged alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 3500lbs-72300lbs
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 0.35mm-1.5mm
11. Special specifications and marks can be made according to customers requirement
Specification:
Size(mm) |
WLL(lbs) |
Weight(lbs) |
A(mm) |
K(mm) |
W(mm) |
7 |
3500 |
0.28 |
0.68 |
1.85 |
0.35 |
8 |
4500 |
0.55 |
0.77 |
2.2 |
0.38 |
10 |
7100 |
0.84 |
0.94 |
2.6 |
0.52 |
13 |
12000 |
1.6 |
1.27 |
3.4 |
0.64 |
16 |
18100 |
2.86 |
1.48 |
4.13 |
0.75 |
20 |
28300 |
5 |
1.75 |
5.08 |
0.96 |
22 |
34200 |
7.5 |
2.18 |
5.47 |
1.06 |
25 |
47700 |
11.03 |
2.5 |
6.1 |
1.22 |
32 |
72300 |
20.39 |
2.76 |
7.99 |
1.5 |
Sketch of the A337 alloy steel connecting link
