Stainless Steel Regular Swivel
[Search Related Products]
Regular swivels
The regular swivel is a kind of most common swivel, which is widely used in industry. It is made by high polished stainless steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.
Product details:
1. Item: regular swivels
2. Type: US type
3. Material: stainless steel
4. Technology: drop forged
5. Surface: high polished
6. WLL: 112.5kg-3250kg
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 4mm-25mm
10.Special specifications and marks can be made according to customers requirement
Specification£º
Size(A) |
B |
L |
W.L.L. |
mm |
mm |
mm |
kg |
4 |
4 |
50 |
112.5 |
5 |
5 |
59 |
162.5 |
6 |
6 |
66 |
300 |
8 |
8 |
94 |
475 |
9 |
9 |
102 |
750 |
10 |
10 |
113 |
875 |
13 |
13 |
152 |
1250 |
16 |
16 |
188 |
2125 |
19 |
19 |
229 |
2500 |
22 |
22 |
257 |
2875 |
25 |
25 |
291 |
3250 |
Sketch of the regular swivel

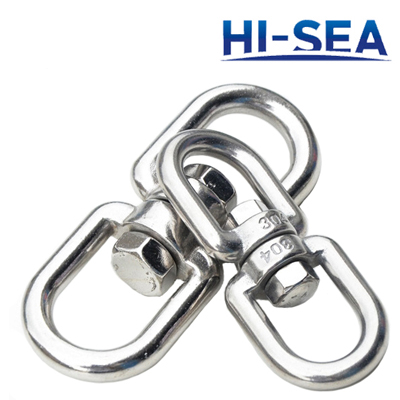

Regular swivel
