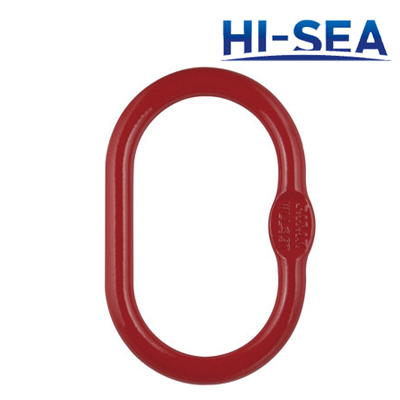

G100 Master Link with Flat

G100 Master Link with Flat

G100 master link with flat has the advantages of small volume, light weight and high strength. The working load limited of it is from 1.4 ton to 81.5 ton. And its size is from 10mm to 70mm. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: G100 master link with flat

2. Grade: G100

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, powder coated

6. WLL:1.4T-81.5T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 10mm-70mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

D(mm)

1.4

0.14

5.6

80

50

10

2.3

0.34

9.2

110

60

13

3.5

0.53

14

110

60

16

5

0.86

20

135

75

18

7.6

1.6

30.4

160

90

23

10

2.46

40

180

100

27

14

4.14

56

200

110

33

25.1

6.22

100.4

260

140

36

30.8

12.85

123.2

340

180

45

40

16.55

160

350

190

50

60

27.01

240

400

200

60

81.5

45

326

460

250

70

G100 Master Link with Flat

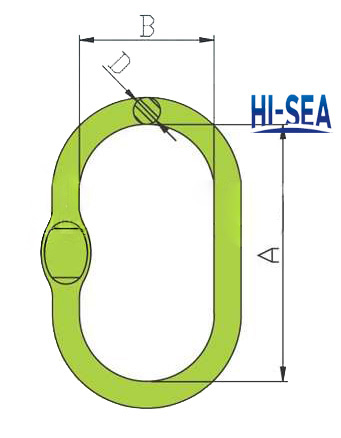

Sketch of the G100 master link with flat
