G80 Webbing Connecting Link

G80 Webbing Connecting Link

G80 webbing connecting link is a kind of hosting rigging fittings. According to the lifting needs, it can be uesd alone or be uesd with other matched riggings. As the increasing cognition by broad new client, the use of connecting links is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.

Product Details:

1. Item: G80 webbing connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1.12T-12.55T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 15mm-41mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	E(mm)	G(mm)	K(mm)	W(mm)
1.12	0.2	4.48	15	60	7	18	56	40
2	0.3	8	20	61.5	9.5	24	63.7	40
3.15	0.68	12.6	24	66	11	30.5	83	39
5.3	1.47	21.2	28	88	16.5	36.8	93.7	55
8	2.3	32	34.5	108	19.8	45.2	120	65.5
12.5	3.3	50	41	129	23	51.8	138	80

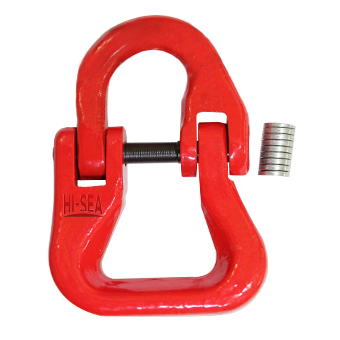

G80 Webbing Connecting Link

Sketch of the G80 webbing connecting link
