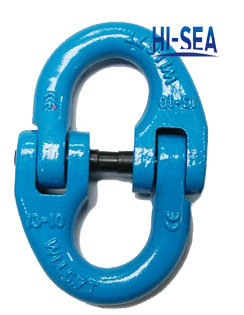

G100 Japanese Type Connecting Link

G100 Japanese Type Connecting Link

G100 Japanese type connecting link can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. Because they have to bear heavy objects, for the security consideration, the material of it is alloy steel. And the working load limited of it is from 1.25ton-5ton. Special specifications and marks can be made according to customers requirement

Product Details:

1. Item: G100 Japanese type connectint link

2. Grade: G100

3. Type: Japanese type

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, Color painted

7. WLL: 1.25T-5T

8. Braking load is 4 times of working load limited

9. Usage: Lifting accessories

10. Size: 7mm-14.5mm

11. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

H(mm)

K(mm)

L(mm)

1.25

0.09

6.25

14

7

42.2

56.2

2

0.16

10

19

8.5

59.8

78.8

3.15

0.3

15.75

22

11

72

94

5

0.55

25

30

14.5

92.8

123.8

G100 Japanese Type Connecting Link

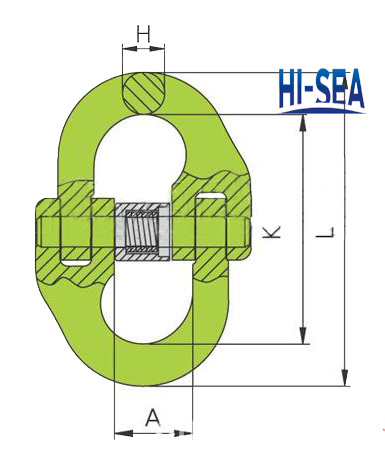

Sketch of the G100 Japanese type connecting link

G100 Japanese Type Connecting Link

G100 Japanese Type Connecting Link
