G80 Low Height Clevis Omega Link

[Search Related Products]

G80 Low Height Clevis Omega Link

G80 Low Height Clevis Omega Link

G80 low height clevis omega link is made bu high quality alloy steel. The working load limited of it is from 2 ton to 3.15 ton. And its size is from 9.5mm to13mm. It has the advantages of small volume, light weight and high strength. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: G80 low height clevis omega link

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 2T-3.15T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 9.5mm-13mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

D(mm)

H(mm)

K(mm)

L(mm)

2

0.22

8

9.5

33

27

45

69

102

3.15

0.45

12.6

13

45.5

27

45

72

116

G80 Low Height Clevis Omega Link

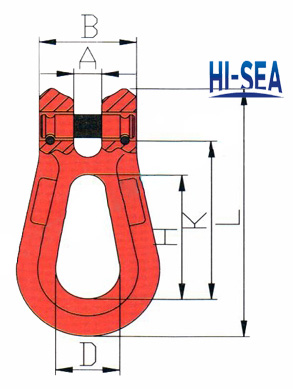

Sketch of the G80 low height clevis omega link
