Rigging Hardware Connecting Link

Rigging Hardware Connecting Link

Rigging hardware connecting link can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. The surface of them are smooth to avoid snagging. And the heavy duty retaining bush with its well protected square-sectioned spring ensures high reliability andsafety. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: Rigging hardware connectint link

2. Grade: G80

3. Type: European type

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, Color painted

7. WLL: 1.4T-39.3T

8. Braking load is 4 times of working load limited

9. Usage: Lifting accessories

10. Size: 7.4mm-40mm

11. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

C(mm)

D(mm)

1.4

0.1

5.6

14

7.6

44.5

60

2.5

0.22

10

18.5

10

61.5

84.5

4

0.45

16

23

12.6

72

97.2

6.7

1.15

26.8

27.5

16.8

89

127

10

1.75

40

33.5

21

103

145

16

2.7

64

42

24.5

116

175

19

4.02

76

48

27

135

193

26.5

5.1

106

61

32

164

228

39.3

8.5

157.2

80

40

194

274

Rigging Hardware Connecting Link

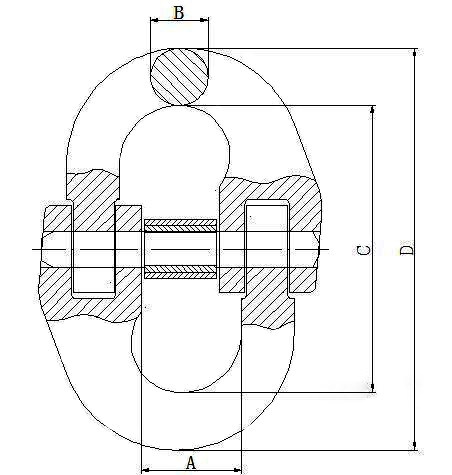

Sketch of the rigging hareware connecting link

Rigging Hardware Connecting Link

Rigging Hardware Connecting Link
