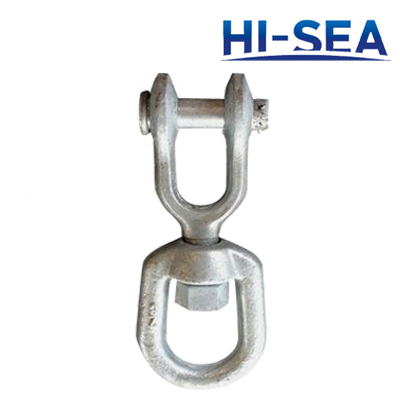

US Type Jaw End Swivel G403
US type jaw end swivel G403 is made by high polished stainless steel or carbon steel with zinc plated on the surface. Every procedure are controlled strictly to make sure the quality of swivels before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.
Product details:
1. Item: US type jaw end swivel G403
2. Type: US type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: high polished, zinc plated
6. WLL: 850lbs-12500lbs
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 1/4inch-1inch
10. Special specifications and marks can be made according to customers requirement
Specification:
Size |
B |
C |
K |
M |
N |
R |
WLL |
Weight |
in |
in |
in |
in |
in |
in |
in |
lbs |
lbs |
1/4 |
0.69 |
0.75 |
0.47 |
0.31 |
0.88 |
2.63 |
850 |
0.21 |
5/16 |
0.81 |
1 |
0.5 |
0.38 |
0.88 |
2.94 |
1250 |
0.34 |
3/8 |
0.94 |
1.25 |
0.63 |
0.5 |
1.06 |
3.63 |
2250 |
0.66 |
1/2 |
1.31 |
1.5 |
0.75 |
0.63 |
1.31 |
4.5 |
3600 |
1.34 |
5/8 |
1.56 |
1.75 |
0.94 |
0.75 |
1.5 |
5.31 |
5200 |
2.48 |
3/4 |
1.75 |
2 |
1.13 |
0.88 |
1.75 |
6.06 |
7200 |
3.88 |
7/8 |
2.06 |
2.25 |
1.19 |
1 |
2.06 |
7 |
10000 |
5.87 |
1 |
2.31 |
2.5 |
1.75 |
1.13 |
2.81 |
8.56 |
12500 |
9.84 |
1 1/4 |
2.69 |
3.13 |
2.06 |
1.63 |
2.81 |
9.75 |
18000 |
15.75 |
1 1/2 |
3.88 |
4 |
2.88 |
2.25 |
4.44 |
14.25 |
45200 |
54.75 |
Sketch of the US type jaw end swivel G403
US type jaw end swivel G403
