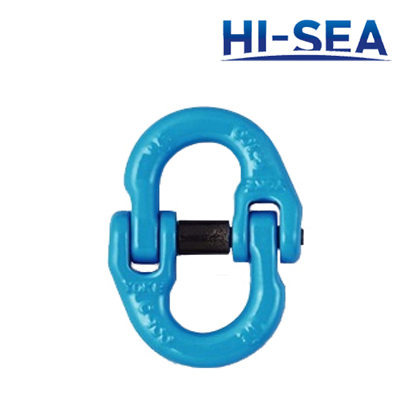

G80 European Type Connecting Link
G80 European type connecting link is a kind of most common swivel, which is widely used in industry. It has the advantages of small volume, light weight and high strength. And the surface of them are smooth to avoid snagging. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.Product Details:
1. Item: G80 European type connectint link
2. Grade: G80
3. Type: European type
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 1.12T-31.5T
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 3mm-37mm
11. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
H(mm) |
K(mm) |
L(mm) |
1.12 |
0.08 |
4.48 |
15 |
7 |
42 |
58 |
1.5 |
0.145 |
6 |
16 |
8.5 |
54.8 |
71.8 |
2 |
0.146 |
8 |
18 |
8.5 |
62.5 |
79.5 |
2 |
0.16 |
8 |
18 |
8.5 |
60.5 |
79.5 |
3.15 |
0.3 |
12.6 |
25 |
10.8 |
68 |
93 |
5.3 |
0.7 |
21.2 |
29 |
15 |
87 |
117 |
8 |
1.1 |
32 |
34.5 |
19.8 |
108.5 |
148 |
10 |
1.84 |
40 |
38 |
21 |
112 |
154 |
12.5 |
1.8 |
50 |
41 |
24 |
121.5 |
169.5 |
15 |
3.2 |
60 |
48 |
26 |
141.5 |
193.5 |
21.2 |
4.5 |
84.8 |
57.5 |
30 |
158 |
220 |
31.5 |
9 |
126 |
67 |
37 |
205 |
281 |

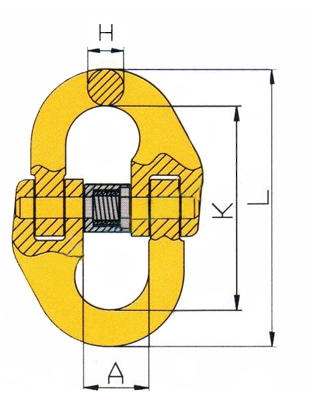

Sketch of the G80 European type connecting link
