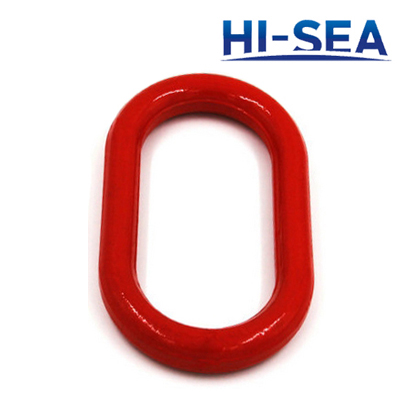

US Type A342 Forged Master Link
US type A342 forged master link is made of high quality alloy steel, and the surface of it is powder plastified and hot dip galvanized. Every procedure are controlled strictly to make sure the quality of hooks before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.
Product Details:
1. Item: US type A342 forged master link
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, powder plastified
6. WLL: 3.2T-169.2T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size:13mm-101.6mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
D(mm) |
3.2 |
0.36 |
16 |
127 |
63.5 |
13 |
4.1 |
0.7 |
20.5 |
152 |
76 |
16 |
5.6 |
0.93 |
28 |
140 |
70 |
19 |
6.8 |
1.5 |
34 |
160 |
90 |
22 |
11 |
2.1 |
55 |
178 |
89 |
25 |
16.4 |
4.24 |
82 |
222 |
111 |
32 |
24.6 |
7.17 |
123 |
267 |
135 |
38 |
38.5 |
11.56 |
192.5 |
305 |
152 |
45 |
46.5 |
17.2 |
232.5 |
355 |
178 |
51 |
64.9 |
24.5 |
324.5 |
406 |
203 |
57 |
72.6 |
30.9 |
363 |
406 |
203 |
63.5 |
98.4 |
39.5 |
492 |
406 |
241 |
70 |
103.4 |
50.34 |
517 |
457 |
228 |
76 |
119 |
65.68 |
595 |
508 |
254 |
82.5 |
126.5 |
90.24 |
632.5 |
508 |
305 |
89 |
152.4 |
89.27 |
762 |
508 |
254 |
95 |
169.2 |
103.43 |
846 |
508 |
254 |
101.6 |
Sketch of the US type A342 forged master link
