Forged Round Ring

Forged Round Ring

Alloy steel forged round ring is a kind of most common links. It has the advantages of small volume, light weight and high strength. And it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: Alloy steel forged round ring

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1100lbs-35000lbs

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 3/8”-2”inch

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(lbs)	Weight(kg)	B.L(lbs)	A(in)	B(in)
1100	0.11	6600	3/8	2
2200	0.21	13200	1/2	2
3300	0.46	19800	5/8	3
3300	0.5	19800	5/8	3
5000	0.67	30000	3/4	3
5600	0.84	33600	3/4	4
7200	1.2	43200	7/8	4
10800	1.59	64800	1	5
10800	2.1	64800	1	5
10400	2.87	62400	1 1/8	6
17000	3.1	102000	1 1/4	5
17000	3.6	102000	1 1/4	6
17000	5.6	102000	1 1/4	10
19000	4.5	114000	1 3/8	6
25000	6.8	150000	1 1/2	8
25000	7.32	150000	1 1/2	8
25000	8.22	150000	1 1/2	10
35000	17.8	210000	2	12

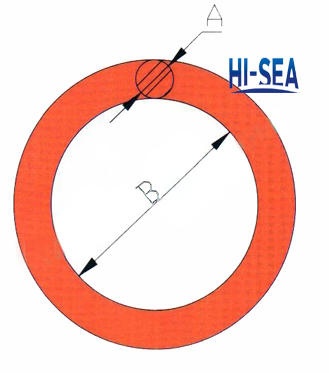

Sketch of the forged round ring

Alloy Steel Forged Round Ring
