A347 Welded Master Link Assembly

A347 Welded Master Link Assembly

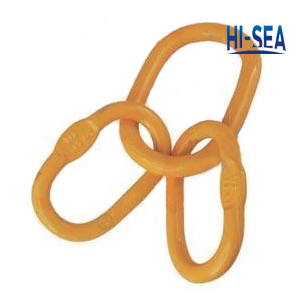

A347 welded master link assembly are consisted by a main ring with two or more subrings. It is mainly used for assembly lifting riggings. The subring connect with connecting link and chain, and all of them assemble into composite rigging to lift heavy objects and equipments. It can be widely used in machinery, metallurgy, electric power, railway, port, wharf, chemical industry and so on.

Product Details:

1. Item: A347 welded master link assembly

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 2.4T-40T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 14mm-51mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

D(mm)

a(mm)

b(mm)

d(mm)

2.4

0.82

9.6

100

60

14

85

40

12

3.2

1.6

12.8

160

90

18

100

60

14

3.2

1.61

12.8

160

90

18

100

60

14

5

1.95

20

160

90

20

100

60

14

8

3.16

32

180

100

22

150

70

18

12

6.75

48

270

140

28

160

90

22

17.4

9.31

69.6

270

140

32

180

100

25

21

18.4

84

300

160

40

270

140

31

30

26.4

120

340

180

45

285

155

36

40

42.91

160

350

190

51

340

180

45

A347 Welded Master Link Assembly

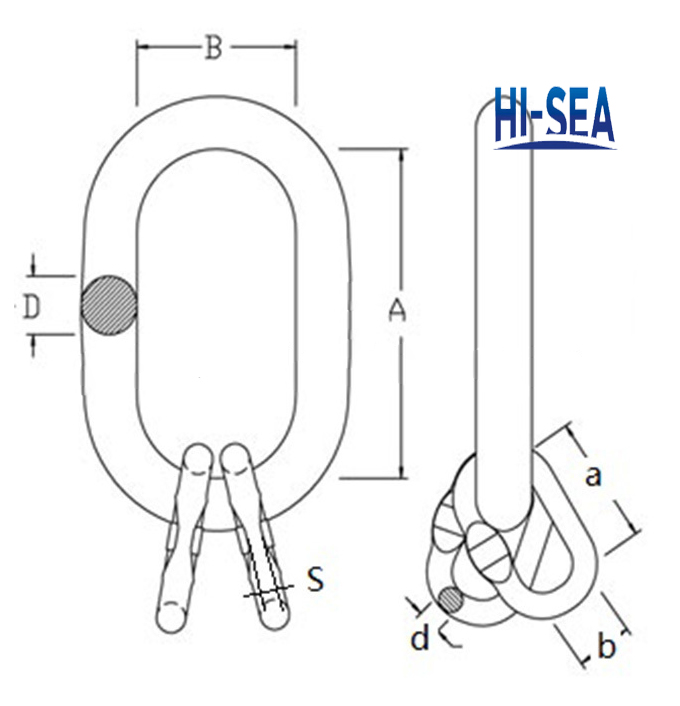

Sketch of the A347 welded master link assembly

A347 Welded Master Link Assembly

A347 Welded Master Link Assembly
