Galvanized Connecting Link

Galvanized Connecting Link

Galvanized connecting link can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. It is made by quenched and tempered alloy steel for high tensile strength and wear resistance. They can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes.

Product Details:

1. Item: Galvanized connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, electric galvanized, Color painted

6. WLL: 1.4T-39.3T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 7.6mm-40mm

10. Special specifications and marks can be made according to customers requirement

Specification:

Size

Weight(kg)

WLL(T)

B.L(T)

A(mm)

H(mm)

K(mm)

L(mm)

6

0.1

1.4

5.6

14

7.6

44.5

60

8

0.22

2.5

10

18.5

10

61.5

84.5

10

0.45

4

16

23

12.6

72

97.5

13

1.15

6.7

26.8

27.5

16.8

89

127

16

1.75

10

40

33.5

21

103

145

20

2.7

16

64

42

24.5

116

175

22

4.02

19

76

48

27

135

193

26

5.1

26.5

106

61

32

164

228

32

8.5

39.3

157.2

80

40

194

274

Galvanized Connecting Link

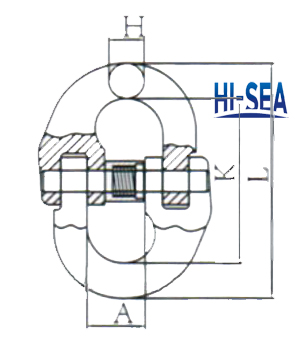

Sketch of the Galvanized connecting link
