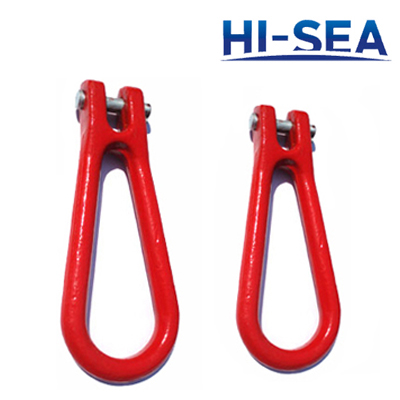

G80 Clevis Reeving Link
[Search Related Products]
G80 Clevis Reeving Link
G80 clevis reeving link is made by high quality alloy steel with advanced international production process. Every procedure are controlled strictly to make sure the quality of swivels before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.Product Details:
1. Item:G80 clevis reeving link
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 3.15T-5.3T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size:12.5mm-16.5mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
D(mm) |
H(mm) |
K(mm) |
L(mmm) |
3.15 |
0.87 |
12.6 |
12.5 |
46 |
50 |
140 |
173 |
209 |
5.3 |
1.75 |
21.2 |
16.5 |
58 |
66 |
140 |
182 |
227 |

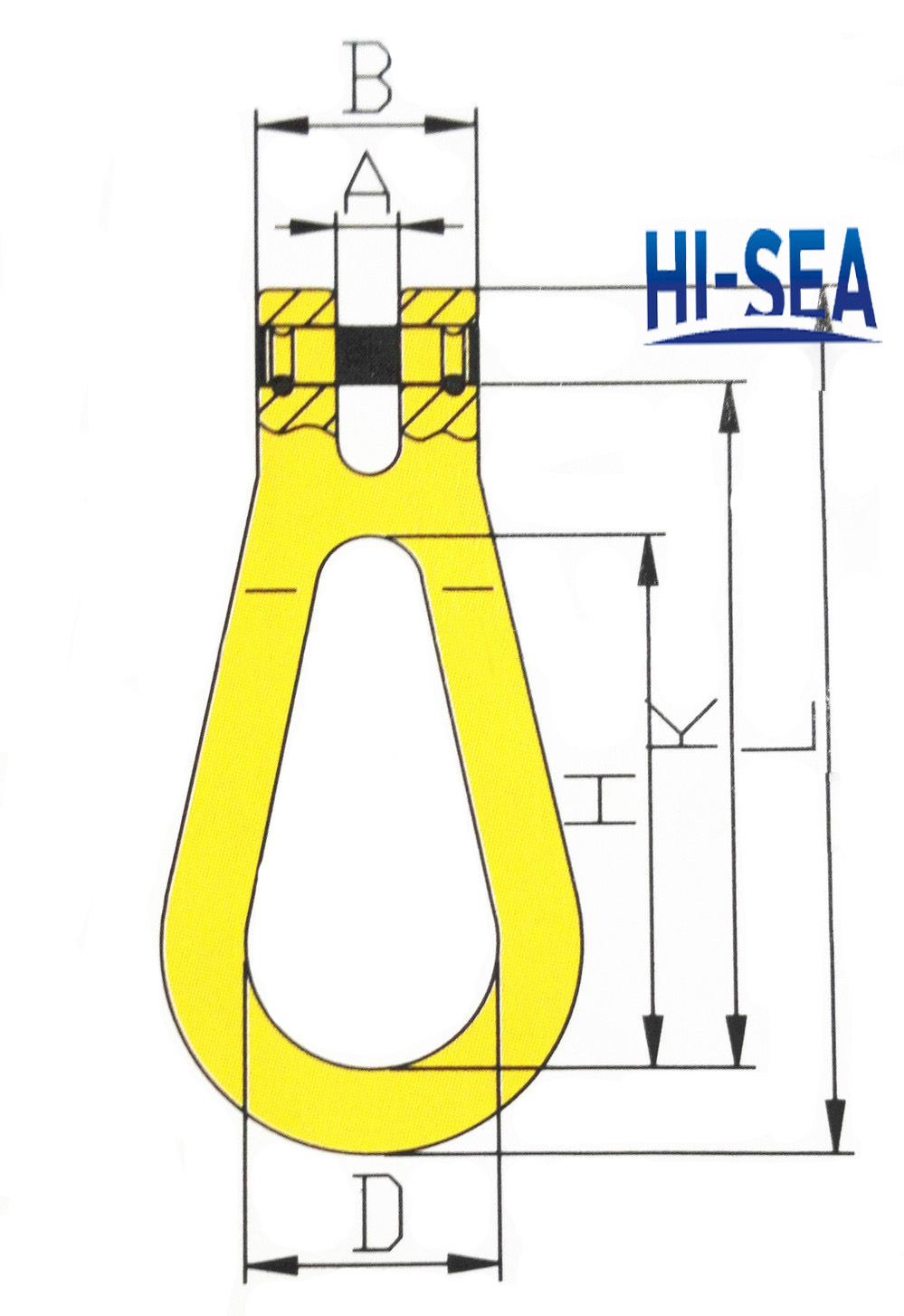

Sketch of the G80 clevis reeving link
