A345 Master Link Assembly(Forged Main Link)
[Search Related Products]A345 Master Link Assembly(Forged Main Link)
A345 master link assembly (forged main link) is one kind of common links. It is made by high qaulity alloy steeel with advanced international production process. The working load limited of it is from 4.1 ton to 40.3 ton. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.
Product Details:
1. Item: A345 master link assembly (forged main link)
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 4.1T-40.3T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 20mm-350mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
D(mm) |
a(mm) |
b(mm) |
d(mm) |
4.1 |
1.5 |
20.5 |
140 |
70 |
20 |
85 |
40 |
14 |
8.4 |
3.29 |
42 |
178 |
89 |
25 |
100 |
60 |
18 |
14.1 |
7.18 |
70.5 |
220 |
110 |
32 |
100 |
60 |
22 |
21.3 |
12.91 |
106.5 |
267 |
135 |
38 |
180 |
100 |
28 |
33.3 |
21.25 |
166.5 |
305 |
152 |
45 |
180 |
100 |
35 |
40.3 |
30.34 |
201.5 |
356 |
178 |
50 |
180 |
100 |
38 |
Sketch of the A345 master link assembly

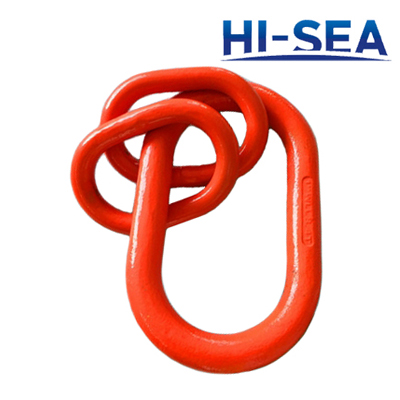

A345 Master Link Assembly (Forged Main Link)
