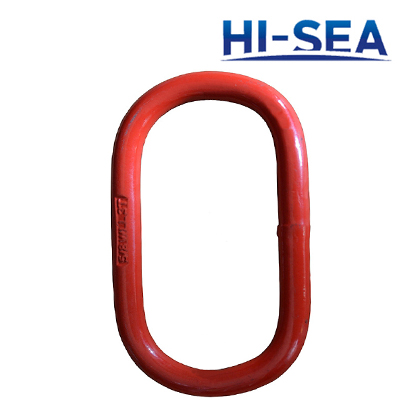

G100 Welded Master Link

G100 Welded Master Link

G100 welded master link is a kind of hosting rigging fittings. According to the lifting needs, it can be uesd alone or be uesd with other matched riggings. It could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.Besides that, every procedure are controlled strictly to make sure the quality of hooks before delivery.

Product Details:

1. Item:G100 welded master link

2. Grade: G100

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1.6T-3.15T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 13mm-18mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

D(mm)

1.6

0.32

6.4

110

60

13

2.12

0.6

8.48

110

60

16

3.15

0.8

12.6

135

75

18

G100 Welded Master Link

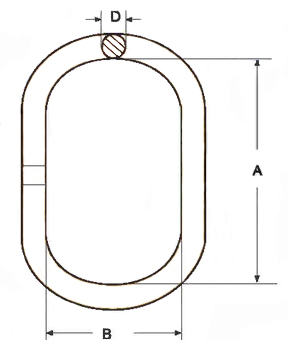

Sketch of the G100 welded master link

G100 Welded Master Link

G100 Weldled Master Link
