Swivel Hoist Ring
Swivel hoist ring can be used in special lifting applications to swivel in horizontal of 360 degrees and in vertical of 180 degrees. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. And we can provide it with sufficient supply, fast delivery time and complete specification.
Product Details:
1. Model: Swivel hoist ring
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. SWL: 0.4T-49T
6. Weight: 0.41kg-25.9kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Item |
WLL |
Weight |
A |
B |
C |
D |
d |
E |
F |
T |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
HS-M8 |
0.4 |
0.41 |
30 |
42 |
96 |
44 |
13 |
37 |
13 |
HS-M10 |
0.5 |
0.43 |
30 |
42 |
96 |
44 |
13 |
37 |
19 |
HS-M12 |
1.05 |
0.7 |
30 |
42 |
96 |
44 |
13 |
37 |
19 |
HS-M14 |
1.15 |
0.75 |
30 |
42 |
96 |
44 |
13 |
37 |
31.8 |
HS-M16 |
1.9 |
0.9 |
30 |
42 |
96 |
44 |
13 |
37 |
31.8 |
HS-M20 |
2.15 |
2.21 |
40 |
67 |
160 |
75.5 |
19.1 |
64.3 |
38.1 |
HS-M22 |
2.25 |
2.21 |
40 |
67 |
160 |
75.5 |
19.1 |
64.3 |
38.1 |
HS-M24 |
4.2 |
2.21 |
40 |
67 |
160 |
75.5 |
19.1 |
64.3 |
38.1 |
HS-M30 |
5 |
3.86 |
50.8 |
95 |
205 |
90 |
22.2 |
74 |
50 |
HS-M33 |
7 |
3.86 |
50.8 |
95 |
205 |
90 |
22.2 |
74 |
50 |
HS-M36 |
8 |
3.86 |
50.8 |
95 |
205 |
90 |
22.2 |
74 |
54 |
HS-M39 |
8 |
3.86 |
50.8 |
95 |
205 |
90 |
22.2 |
74 |
58 |
HS-M42 |
10 |
6.08 |
63 |
108 |
230 |
100 |
25 |
85 |
63 |
HS-M45 |
10 |
6.08 |
63 |
108 |
230 |
100 |
25 |
85 |
68 |
HS-M48 |
10 |
6.08 |
63 |
108 |
230 |
100 |
25 |
85 |
68 |
HS-M52 |
15 |
10.8 |
70 |
120 |
278 |
132 |
32 |
95 |
84 |
HS-M56 |
15 |
10.8 |
70 |
120 |
278 |
132 |
32 |
95 |
84 |
HS-M60 |
15 |
10.8 |
70 |
120 |
278 |
132 |
32 |
95 |
90 |
HS-M64 |
15 |
10.8 |
70 |
120 |
278 |
132 |
32 |
95 |
95 |
HS-M72 |
25 |
22.8 |
80 |
125 |
331 |
166 |
40 |
130 |
108 |
HS-M80 |
30 |
23.9 |
80 |
125 |
331 |
166 |
40 |
130 |
120 |
HS-M90 |
35 |
25.9 |
80 |
125 |
331 |
166 |
40 |
130 |
135 |
HS-M100 |
49 |
25.9 |
80 |
125 |
331 |
166 |
40 |
130 |
135 |

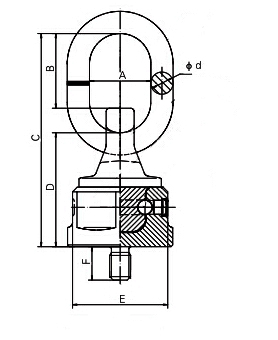

Sketch of swivel hoist ring

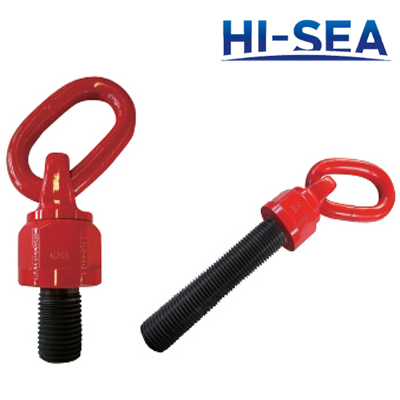

Swivel Hoist Ring-A
Swivel Hoist Ring-B
