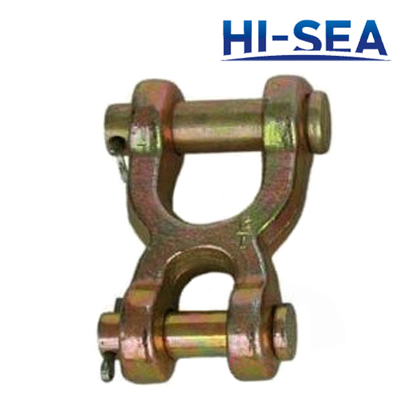

Double Clevis Link
Double clevis link is a kind of hosting rigging fittings. According to the lifting needs, it can be uesd alone or be uesd with other matched riggings. Its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.Product Details:
1. Item: Double clevis link
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 1.18T-7.94T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 9.5mm-18.5mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
L(mm) |
M(mm) |
N(mm) |
1.18 |
0.17 |
4.72 |
32 |
13.2 |
72.5 |
19.5 |
37.5 |
2.45 |
0.37 |
9.8 |
39.5 |
14.7 |
90.7 |
25.9 |
52.5 |
3.17 |
0.57 |
12.68 |
44.2 |
18 |
104 |
29.3 |
57.5 |
4.17 |
0.71 |
16.68 |
51 |
21.2 |
116 |
32.3 |
63.5 |
7.94 |
1.3 |
31.76 |
56.8 |
19.8 |
144 |
41.4 |
81 |
Sketch of the double clevis link
