Double Eye Swivel

Double Eye Swivel

Double eye swivel is made by high quality carbon steel with hot dip galvanized on the surface. The working load of it is from 0.3 ton to 6 ton. And its size is from 8mm to 24mm. It has the advantages of small volume, light weight and high strength.So it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product details:

1. Item: Double eye swivel

2. Material: carbon steel

3. Technology: drop forged

4. Surface: hot dip galvanized, zinc plated

5. WLL:0.3T-6T

6. Breaking load: 4 times of working load

7. Usage: lifting, rigging

8. Size: 8mm-24mm

9. Special specifications and marks can be made according to customers requirement

Specification：

Size	Φ	A	B	WLL	Weight
mm	mm	mm	mm	ton	kg
8	8	30	22	0.3	0.15
10	10	38	29	0.7	0.25
12	12	40	32	1.2	0.4
14	14	46	36	2	0.6
16	16	50	40	3	0.85
18	18	55	46	3.5	1.2
22	22	70	55	5	2
24	24	80	64	6	3

Double Eye Swivel

Sketch of the double eye swivel

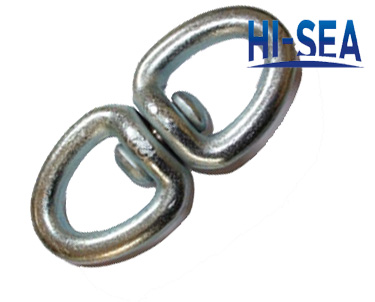

Double eye swivel
