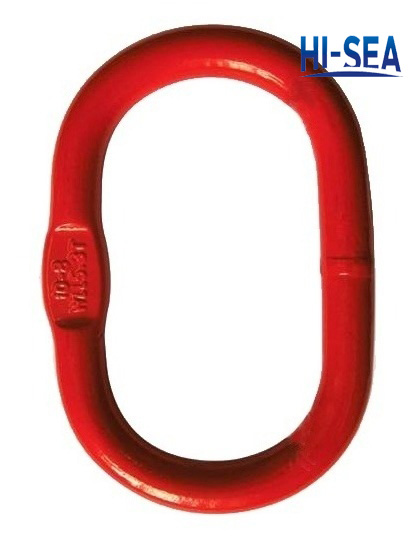

G100 Welded Master Link with Flat
G100 welded master link with flat is a kind of most common swivel, which is widely used in industry. It is made by high quelity alloy steel with advanced international production process. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document.Product Details:
1. Item: G100 welded master link with flat
2. Grade: G100
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, powder coating
6. WLL: 4T-14.4T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 25mm-38mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
D(mm) |
4 |
3.7 |
16 |
340 |
180 |
25 |
6.5 |
4.7 |
26 |
340 |
180 |
28 |
10 |
7 |
40 |
340 |
180 |
34 |
14.4 |
8.9 |
57.6 |
340 |
180 |
38 |

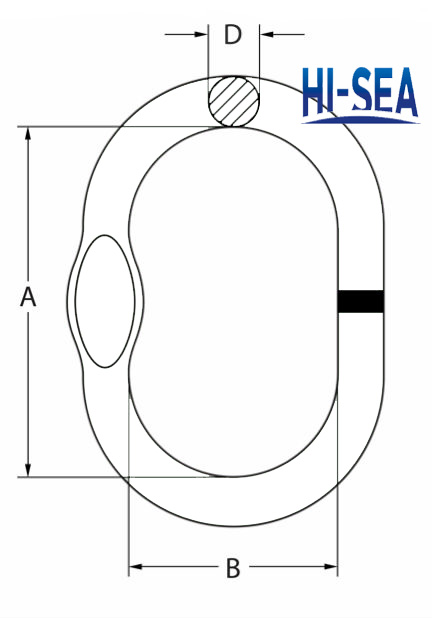

Sketch of the G100 welded master link with flat
