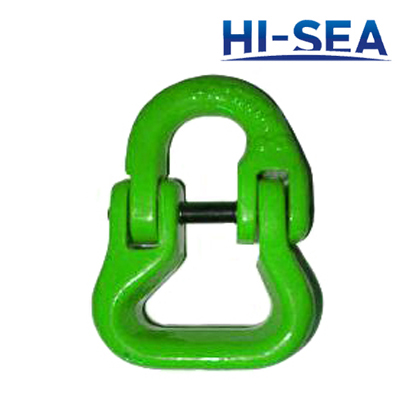

G80 Special Webbing Connecting Link

G80 Webbing Connecting Link

G80 special webbing connecting link can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. And its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. Special specifications and marks can be made according to customers requirement

Product Details:

1. Item: G80 special webbing connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 12.5T-20T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 37mm-51.5mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

H(mm)

K(mm)

L(mm)

M(mm)

12.5

3.1

50

37

20

186.5

246

26.2

15

4.55

60

48

25

205.5

273

28.2

20

6.1

80

51.5

30

231

306

33

G80 Special Webbing Connecting Link

Sketch of the G80 special webbing connecting link

G80 Special Webbing Connecting Link

G80 Special Webbing Connecting Link
