G80 Long Shape Omega Link

[Search Related Products]

G80 Long Shape Omega Link

G80 Long Shape Omega Link

G80 long shape omega link is designed to use with G80 alloy chain and connecting link. It is drop forged by high quality alloy steel with hot dip galvanizing on the surface. And it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. All the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

Product Details:

1. Item: G80 long shape omega link

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1.12T-5.3T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 8mm-15mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

D(mm)

K(mm)

L(mm)

1.12

0.12

4.48

8

28

20

47.5

75

2

0.17

8

10.5

32.5

25

59

92

3.15

0.43

12.6

13

45.5

30

78.5

123

5.3

1

21.2

15

57.5

46

94

154

G80 Long Shape Omega Link

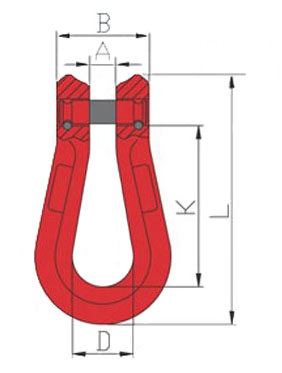

Sketch of the G80 long shape omega link

G80 Long Shape Omega Link

G80 Long Shape Omega Link
