G80 Container Clevis Link with Latch
[Search Related Products]G80 Container Clevis Link with Latch
G80 container clevis link with latch is made by high strength alloy steel. Because of its solid structure, it can used with omega liks, connection links, chain and other lifting components in many circumstances. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.
Product Details:
1. Item: G80 container clevis link with latch
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 5.3T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 22mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
C(mm) |
H(mm) |
L(mm) |
5.3 |
1.9 |
21.2 |
15.5 |
60 |
71.5 |
104 |
195 |

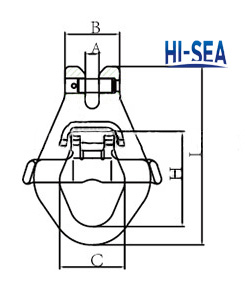

Sketch of the G80 container clevis link with latch
