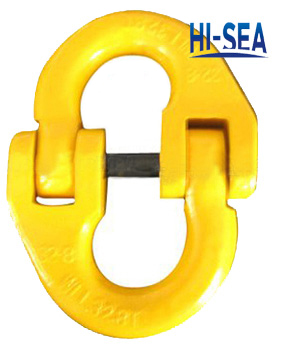

G80 High Quality Connecting Link
G80 high quality connecting link is made form quenched and tempered alloy steel for high tensile strength and wear resistance. It can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. It is available for working load limited from 1 ton to 32.2 ton.Product Details:
1. Item: G80 high quality connectint link
2. Grade: G80
3. Material: Alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 1T-32.2T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 6mm-30/32mm
10. Special specifications and marks can be made according to customers requirement
Specification:
Size(mm) |
WLL(T) |
Weight(lbs) |
B1(mm) |
D1(mm) |
H1(mm) |
H(mm) |
6 |
1 |
0.3 |
14.5 |
7 |
18.5 |
47.5 |
7/8 |
2 |
0.35 |
20.5 |
8.5 |
22 |
57 |
10 |
3.2 |
0.75 |
25.7 |
11 |
26.5 |
69 |
13 |
5.1 |
1.43 |
26.5 |
15.5 |
32 |
86 |
16 |
8 |
2.2 |
33 |
19.5 |
39.5 |
103 |
18/20 |
12.6 |
3.93 |
41.5 |
22 |
46 |
122 |
22 |
15 |
4.6 |
47 |
25 |
53 |
138 |
24/26 |
20.6 |
7.8 |
59 |
29 |
59 |
152 |
30/32 |
32.2 |
15 |
69 |
36 |
68 |
176 |
Sketch of the G80 high quality connecting link
