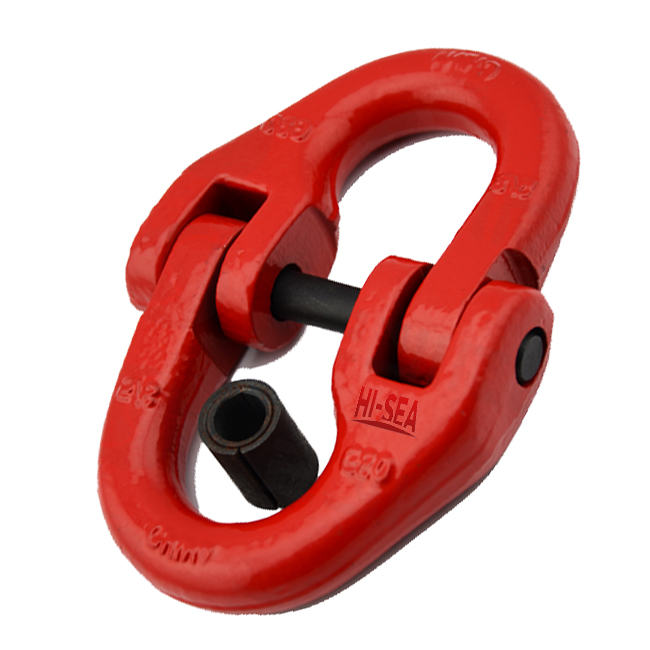

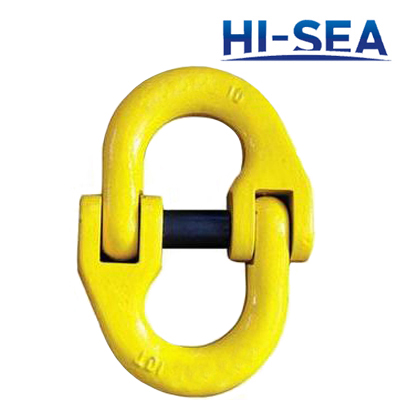

G80 U.S. Type Connecting Link
G80 US type connecting link is simple to be assembled and can be disconnected if required. It is just take a few minutes, and the only tools are a hammer and a punch. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document.
Product Details:
1. Item: G80 US type connectint link
2. Grade: G80
3. Type: US type
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 3250lbs-28700lbs
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 7mm-24.5mm
11. Special specifications and marks can be made according to customers requirement
Specification:
WLL(lbs) |
Weight(kg) |
B.L(lbs) |
A(mm) |
H(mm) |
K(mm) |
L(mm) |
3250 |
0.24 |
13000 |
16.5 |
7 |
55 |
69 |
4500 |
0.32 |
18000 |
18 |
8.5 |
62.5 |
79.5 |
6600 |
0.58 |
26400 |
27 |
11.5 |
68.5 |
91.5 |
11250 |
1.2 |
45000 |
35 |
15 |
81 |
111 |
16500 |
2.42 |
66000 |
42 |
21 |
95.5 |
137.5 |
23000 |
3.89 |
92000 |
43 |
22.5 |
126 |
171 |
28700 |
6.08 |
11500 |
48 |
24.5 |
141.5 |
190.5 |
Sketch of the G80 US type connecting link
