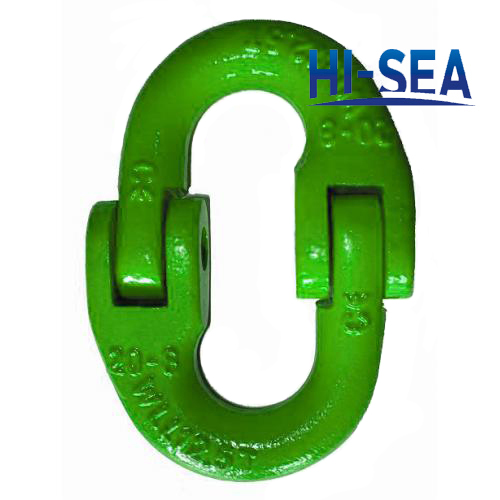

Drop Forged Alloy Steel Connecting Link
Drop forged alloy steel connecting link has the advantages of small volume, light weight and high strength. And the surface of them are smooth to avoid snagging. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.
Product Details:
1. Item: G80 high quality connectint link
2. Grade: G80
3. Material: Alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 1T-32.2T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 6mm-30/32mm
10. Special specifications and marks can be made according to customers requirement
Specification:
WLL(T) |
Weight(kg) |
B.L(T) |
A(mm) |
B(mm) |
L(mm) |
K(mm) |
H(mm) |
1.12 |
0.08 |
4.48 |
15 |
7.5 |
58 |
42 |
7 |
1.5 |
0.145 |
6 |
16 |
8.5 |
71.8 |
54.8 |
8.5 |
2 |
0.146 |
8 |
18 |
9.5 |
79.5 |
60.5 |
8.5 |
2 |
0.16 |
8 |
19.5 |
9.5 |
79.5 |
60.5 |
8.5 |
3.15 |
0.3 |
12.6 |
25 |
12 |
90.5 |
68 |
11.5 |
5.3 |
0.65 |
21.2 |
29 |
15 |
117 |
87 |
15 |
8 |
1.15 |
32 |
34.5 |
19.8 |
148 |
108.4 |
19.8 |
10 |
1.84 |
40 |
38 |
21 |
154 |
112 |
21 |
12.5 |
2.1 |
50 |
41 |
24 |
169.5 |
121.5 |
24 |
15 |
2.87 |
60 |
48 |
26 |
193.5 |
141.5 |
26 |
21.2 |
4.5 |
84.8 |
57.5 |
31 |
220 |
158 |
30 |
31.5 |
8.21 |
126 |
67 |
38 |
281 |
205 |
37 |
Sketch of the drop forged alloy steel connecting link
