G100 Welded Master Link Assembly with Flat

G100 Welded Master Link Assembly with Flat

A345 master link assembly (forged main link) is one kind of common links. It is made by high qaulity alloy steeel with advanced international production process. The working load limited of it is from 4.1 ton to 40.3 ton. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: A345 master link assembly (forged main link)

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 4.1T-40.3T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 20mm-350mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	D(mm)	a(mm)	b(mm)	d(mm)
4.1	1.5	20.5	140	70	20	85	40	14
8.4	3.29	42	178	89	25	100	60	18
14.1	7.18	70.5	220	110	32	100	60	22
21.3	12.91	106.5	267	135	38	180	100	28
33.3	21.25	166.5	305	152	45	180	100	35

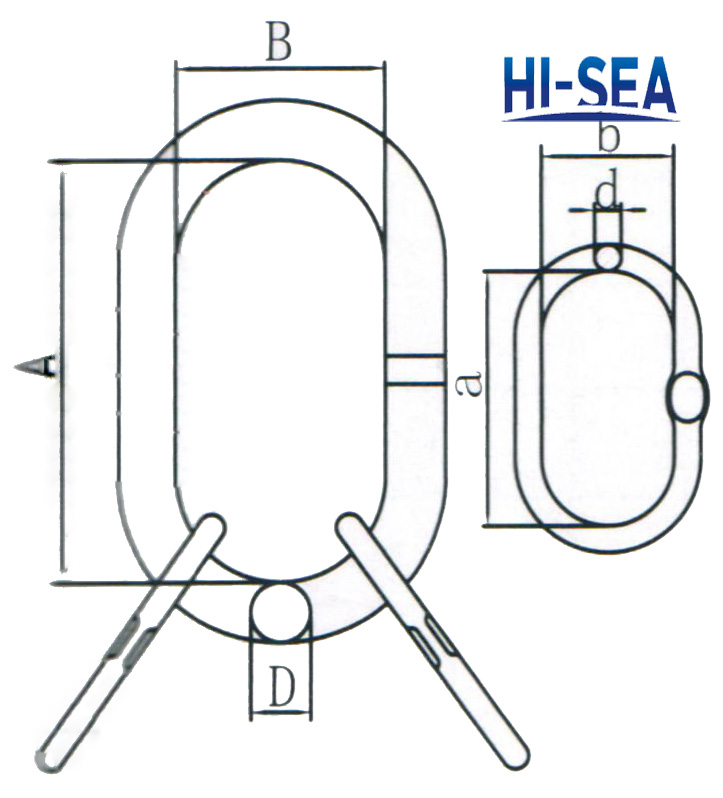

Sketch of the G100 welded master link assembly with flat
