Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S

[Search Related Products]

Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S

Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S

The displacement capacity of this marine air compressor is 38~48m3/h.The rotating speed is 630~710r/min.H-6S H-8S marine air compressor is a kind of medium pressure air cooling air compressor.It is widely suitable for starting the engine of all kinds of vessels.We have professional technology and equipment.The design and manufacture are in accordance with the standard of ISO,IMO and various classification Societies.Classification Society Certificates are available,such as CCS,ABS,BV,RINA,GL,LR,etc.

Therefore,HI-SEA are able to offer various marine air compressors,such as marine low pressure air-cooled air compressor,marine medium pressure air-cooled air compressor,marine medium pressure water-cooled air compressor,emergency air compressors,etc.Our marine compressors can be available according to clients¡¯ specific requests.If you are interested in our marine air compressors,please feel free to contact us for any information.

Main Technical Specifications:

Model

Type

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©

m3/h

MPa

r/min

kw

mm

H-6S

air cooling,2 stage compression

38

3.0

630

11

Belt Type:1160¡Á650¡Á575

Belt Vertical Type:700¡Á750¡Á1100

H-8S

air cooling,2 stage compression

48

3.0

710

11

(Note:It is suitable for¨Q0.5m3 air bottle.The size of marine medium pressure air cooling air compressors can be offered according to clients¡¯ requirements.)

Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S

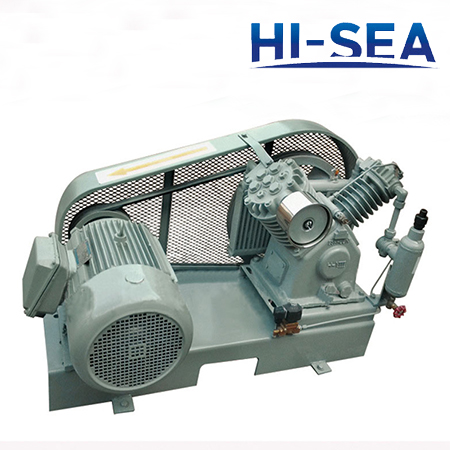

H-6S H-8S Belt Type Marine Medium Pressure Air Cooling Air Compressor

Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S

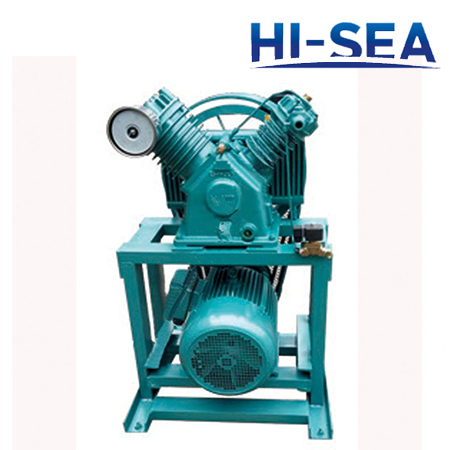

H-6S H-8S Belt Vertical Type Marine Medium Pressure Air Cooling Air Compressor

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.

Belt Type Marine Medium Pressure Air Cooling Air Compressor H-6S H-8S
