Marine Vertical Medium Pressure Air-cooled Air Compressor

[Search Related Products]

Marine Vertical Medium Pressure Air-cooled Air Compressor

Product Description

2ZF-0.34/30-B Marine Vertical Medium Pressure Air-cooled Air Compressor is especially suitable for starting the main engine of ships and supplying vessels and ships with the medium pressure air source.The displacement capacity is 0.34 m3/min(20.4 m3/h).The specified discharge pressure is 3.0 MPa.The type of this marine air compressor is double-row,vertical,air-cooled and 2 stage compression piston type.

HI-SEA offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Wonderful service and is available.

Product Features:

Small size,light weight,high efficiency,low noise and smooth operation

Especially suitable for supplying ships with the medium pressure air source and starting the main engine of ships

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Specification:



Model

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

2ZF-0.34/30-B

20.4

0.34

3.0

600

5.5

7.5

586¡Á520¡Á1020

185

(Note:More marine air compressors can be offered according to your special requests.)
Marine Vertical Medium Pressure Air-cooled Air Compressor

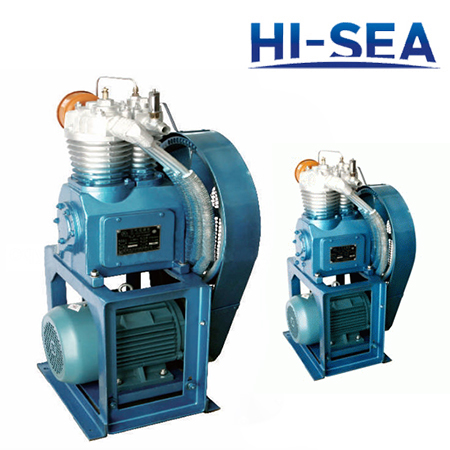

Picture of Marine Vertical Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
