Marine V-type Medium Pressure Air-cooled Air Compressor

[Search Related Products]

Marine V-type Medium Pressure Air-cooled Air Compressor

CV Series Marine V-type Medium Pressure Air-cooled Air Compressor

This marine medium pressure air-cooled air compressor is mainly used for starting the main engine of the ships and various marine diesel engine.It has characteristics of smooth operation and high efficiency and low noise.The displacement capacity is 30¡«40 m3/h .The specified discharge pressure is 3.0 MPa.The type of this marine air compressor is V-type,horizontal,air-cooled and 2 stage compression piston type.

CV Series marine medium pressure air cooling air compressor includes CVF-30/30 and CVF-40/30.More models can be customized according to customers¡¯ requirements.HI-SEA offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Good service and is available.

Product Features:

Especially fit for starting the main engine of ships and various marine diesel engine

Smooth operation,high efficiency and low noise

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Specifications:


Model

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

CVF-30/30

30

0.5

3.0

500

7.5

10

1100¡Á650¡Á580

275

CVF-40/30

40

0.67

640

11

15

1100¡Á650¡Á580

300

(Note:More marine medium pressure air cooling air compressors can be offered according to your special requests.)

Marine V-type Medium Pressure Air-cooled Air Compressor

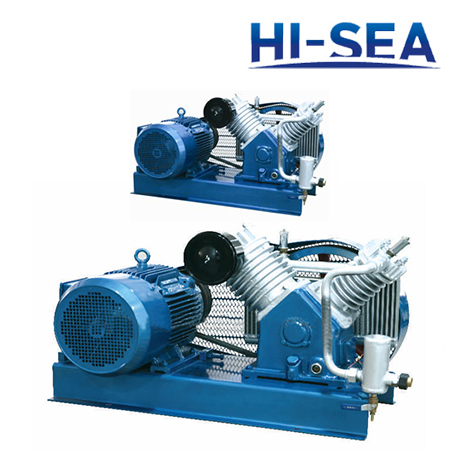

Picture of Marine V-type Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.

Marine V-type Medium Pressure Air-cooled Air Compressor
