Marine W-type Medium Pressure Air-cooled Air Compressor

[Search Related Products]

Marine W-type Medium Pressure Air-cooled Air Compressor

Marine W-type Medium Pressure Air-cooled Air Compressor

This marine medium pressure air-cooled air compressor is mainly suitable for starting the main engine of the ships and all kinds of marine diesel engine.It has features of low noise,high efficiency and smooth operation.The model is CWF-60/30.

The type of this marine air compressor is W-type,horizontal,air-cooled and 2 stage compression piston type.The displacement capacity is 60 m3/h.The specified discharge pressure is 3.0 MPa.

HI-SEA offers you high quality marine middle pressure air compressors.If you are interested in our products,please feel free to contact us directly.We will provide excellent service for you.

Product features:

Smooth operation

High efficiency and low noise

Especially suitable for starting the main engine of ships and all kinds of marine diesel engine

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose


Specification:



Model

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

CWF-60/30

60

1.0

3.0

650

15

20

1310¡Á714¡Á810

366

(Note:More marine air compressors can be offered according to your special requests.)

Marine W-type Medium Pressure Air-cooled Air Compressor

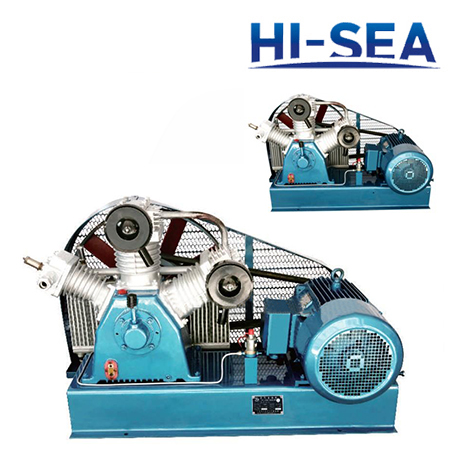

Picture of Marine W-type Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor. Marine W-type Medium Pressure Air-cooled Air Compressor
