WF Series Piston Type Marine Air Cooling Air Compressor

Product Description

WF Series Piston Type Marine Air Cooling Air Compressor is mainly suitable for starting diesel engine of ships.At the same time,it can be available for other fields as pressure air source.Pneumatic device, electronic control unit or automatic control device of the productcan be configured.HI-SEA can also provide single one or horizontal,vertical,gas cylinder units of motor drive or diesel engine drive. Piston type marine air compressor has a long history,reliable performance and stable quality.

Our high-tech manufacture and considerate service will help minimize customers' operation and maintenance costs to reach&nbers' operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. If you are interested in our product,please do not to hesitate to contact us directly for any information.

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.

Main Technical Specifications:

Model

Displacement Capacity(m3/h)

Specified pressure(Mpa)

Gas cylinder diameter(mm)

Piston stroke(mm)

Rotating speed(r/min)

Motor power(kw)

Motor

Weight(kg)

Ⅰ

Ⅱ

WF-0.6/3

2-100

800

7.5

Y132M-4 7.5kw

118

(Note:Our Marine Air Compressor can be customized according to clients' special requirements.)

WF Series Piston Type Marine Air Cooling Air Compressor

WF-0.6/3 Piston Type Marine Air Cooling Air Compressor

WF-0.67/3-B Piston Type Marine Air Cooling Air Compressor

WF-1.0/3-B Piston Type Marine Air Cooling Air Compressor

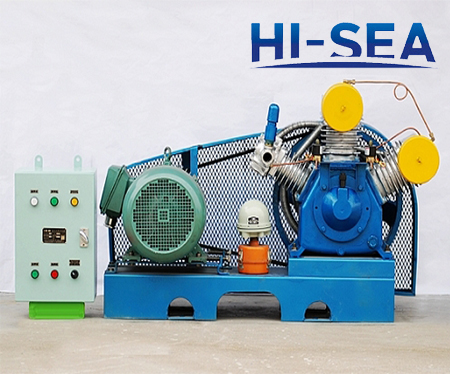

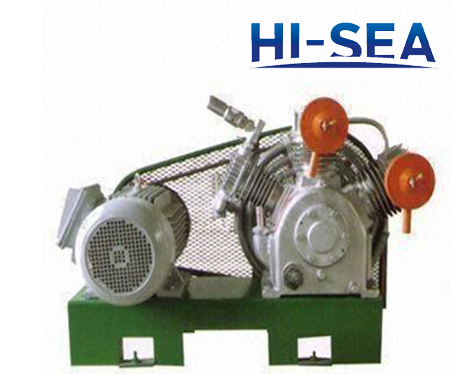

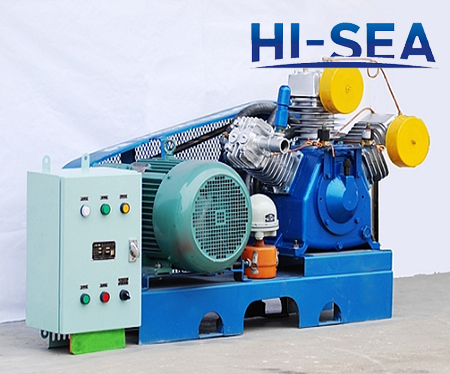

Picture of WF Series Piston Type Marine Air Cooling Air Compressor

Certificates: WF Series Piston Type Marine Air Cooling Air Compressor
