Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit

Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit

CVF Series Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit is vertical and air cooling type.Its displacement capacity is 60～120m3/h.The rotating speed is 650～7500r/min. The motor power is 7.5～18.5KW.It is mainly used for offering vessels air source.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.If you are interested in our products,please feel free to contact us directly.

Main Technical Parameters:

Model	Type	Displacement Capacity（m3/h）	Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power（kW）	Dimension（L×W×H）mm	Weight（kg）
CVF-60/10	Vertical and air cooling type	60	1.0	650	7.5	1110×680×820	310
CVF-90/10		90		720	15	1250×600×710	410
CVF-120/10		120		750	18.5	1200×620×850	430

(Note:CVF Series Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit is suitable for 0.5m³-1.0m³air bottle.More marine air compressors can be offered according to clients’ special requests.)

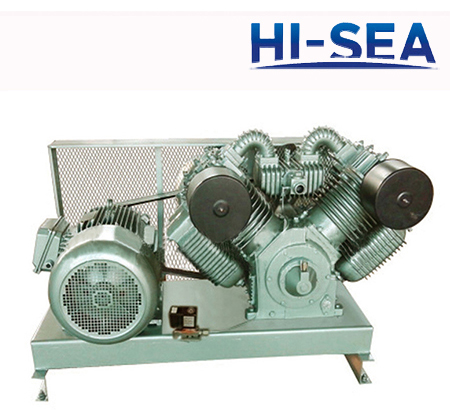

CVF-60/10 Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit

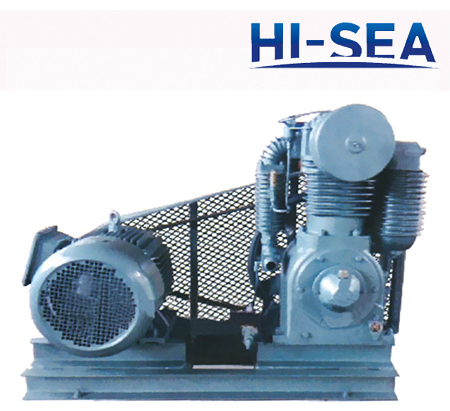

CVF-90/10 Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit

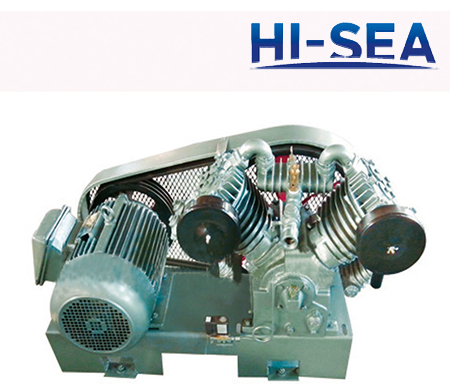

CVF-120/10 Marine Vertical Low Pressure Air cooling Air Compressor with Belt Unit

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.
