Marine Double-row Medium Pressure Water-cooled Air Compressor

Marine Double-row Medium Pressure Water-cooled Air Compressor

The displacement capacity is 30~50 m3/h.The rated pressure is 3.0 Mpa. It is automatic control unit. CV series marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is V-type,double-row,water-cooled and piston type.The drive way is direct connection drive type.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Models are available:CV-50/30,CV-40/30,CV-30/30

Product Features:

Low exhaust temperature,small volume,reliable operation

Low noise,compact structure,high efficiency,light weight

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Main Technical Parameter:

Model

Displacement Capacity

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

m3/h

m3/ min

kW

HP

CV-30/30 (Direct Connection)

30

0.5

3.0

720

7.5

10

1230¡Á730¡Á690

330

CV-40/30 (Direct Connection)

40

0.67

870

11

15

1230¡Á730¡Á690

340

CV-50/30 (Direct Connection)

50

0.83

970

11

15

1230¡Á730¡Á690

340

(Note:More marine water-cooled air compressors can be offered according to your special requests.)

Marine Double-row Medium Pressure Water-cooled Air Compressor

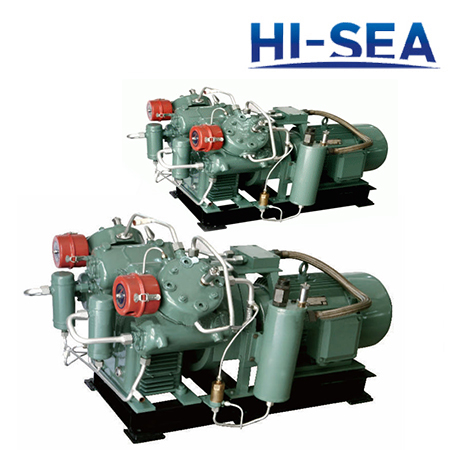

Picture of Marine Double-row Medium Pressure Water-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
