Marine Single-row Medium Pressure Air-cooled Air Compressor

[Search Related Products]

Marine Single-row Medium Pressure Air-cooled Air Compressor

CZ Series Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor

This kind of marine air compressor is especially fit for starting the main engine of ships and various medium-sized diesel engine.CZ series marine medium pressure air-cooled air compressor includes CZ-5/30 FZK,CZ-10/30 FZK and CZ-20/30 FZK.The displacement capacity is 5~20m3 / h.The specified discharge pressure is 3.0 MPa.

The type of this marine air compressor is single-row,horizontal,air-cooled and secondary compression piston type.HI-SEA offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Excellent service and is available.

Product features:

Small volume,reliable operation

Low noise,simple structure,high efficiency,light weight

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Specification:



Model

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

CZ-5/30FZK

5

0.08

3.0

520

2.2

3

970¡Á480¡Á750

170

CZ-10/30FZK

10

0.17

500

3

4

970¡Á480¡Á750

175

CZ-20/30FZK

20

0.34

1000

5.5

7.5

970¡Á480¡Á750

200

(Note:More marine air compressors can be offered according to your special requests.)

Marine Single-row Medium Pressure Air-cooled Air Compressor

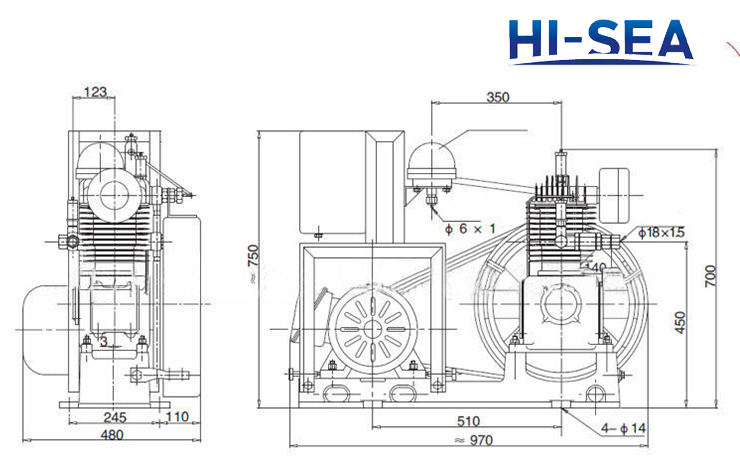

Drawing of Marine Single-row Medium Pressure Air-cooled Air Compressor

Marine Single-row Medium Pressure Air-cooled Air Compressor

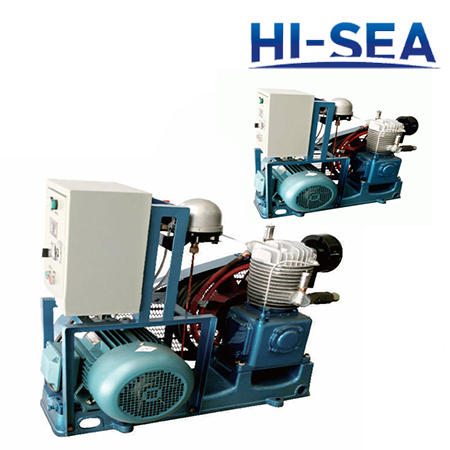

Picture of Marine Single-row Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
