Marine High Pressure Water-cooled Series Air Compressor

Marine High Pressure Series Water-cooled Air Compressor

Marine high pressure water-cooled air compressor has characteristics of a compact structure,small size and volume,light weight,high pressure and easy operation,etc.The marine high pressure water-cooled air compressor can be converted into a automatic control unit form according to the requirements of customers.

Marine high pressure water-cooled air compressor is specially used for ships.The displacement capacity of this marine air compressor is 0.27~0.43 m3/min.The rated pressure is 5.9~19.6 MPa.Its type is single-row,water-cooled,three-stage differential piston type.There are belt drive or elastic coupling direct connection transmission type.
HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Various marine high pressure water-cooled air compressor as follows are available:

Marine Vertical High Pressure Water-cooled Air Compressor

Marine Horizontal High Pressure Water-cooled Air Compressor

Product Characteristics:

High pressure

Compact structure

Small volume and size

Light weight,easy to operate,etc

Main Technical Parameters:



Model

Displacement Capacity

Specified Pressure

Rotating Speed

Motor Power

Dimension£¨L¡ÁW¡ÁH£©

Weight

m3/ min

MPa

r/min

kW

HP

mm

kg

1-0.27/150(Horizontal)

0.27

14.7

970

7.5

10

1100¡Á500¡Á950

300

1-0.27/150(Vertical)

0.27

14.7

1000

7.5

10

555¡Á585¡Á940

210

CZ-0.42/150(Horizontal)

0.42

14.7

1460

11

15

1100¡Á500¡Á950

330

CZ-0.42/150(Vertical)

0.42

14.7

1500

11

15

620¡Á650¡Á1000

270

CZ-0.43/60(Horizontal)

0.43

6.0

1460

11

15

1100¡Á500¡Á950

330

CZ-0.43/60(Vertical)

0.43

6.0

1500

11

15

620¡Á650¡Á1000

270

CZ-0.41/200(Horizontal)

0.41

19.6

1460

11

15

1100¡Á520¡Á950

350

(Note:Marine medium water-cooled air compressors can be offered according to your special requests.)

Marine High Pressure Water-cooled Series Air Compressor Marine High Pressure Water-cooled Series Air Compressor

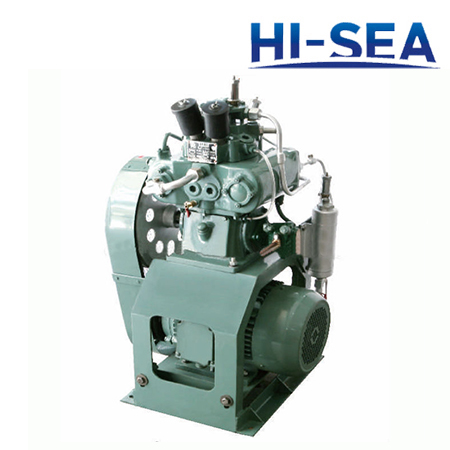

Marine Vertical High Pressure Water-cooled Air Compressor

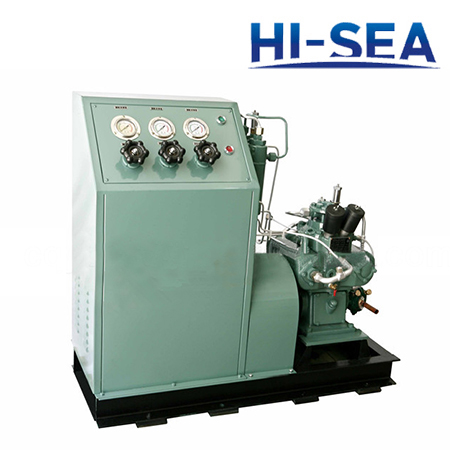

Marine Horizontal High Pressure Water-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
