CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor

[Search Related Products]
CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor

CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor

This marine air compressor is applicable to supplying air source for the ship whistle, oil and gas stove and auxiliary equipment.Its displacement capacity is 10¡«15 m3/h.The rated pressure is 1.0 MPa.Its type is W,air cooled and two stage compression piston.The characteristics of this marine air compressor is low energy consumption,low noise and long service life.It is easy to maintenance.

HI-SEA high-tech manufacture and considerate service will help decrease customers' operation and maintenance costs to reach the aim of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.


Features:

The product has a manual or automatic stop, start and unloading relief function

Low energy consumption,low noise,long service life

Applicable to supplying air source for the ship whistle, oil and gas stove and auxiliary equipment,easy to maintenance.

Main Technical Parameter:

Model

Displacement Capacity£¨m3/h£©

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

kW

HP

CWF¡ª10/1

10

1.0

750

1.5

2

900¡Á400¡Á650

93

CWF¡ª15/1

15

1000

2.2

3

100

(Note:More marine air compressors can be offered according to your special requests.)

CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor

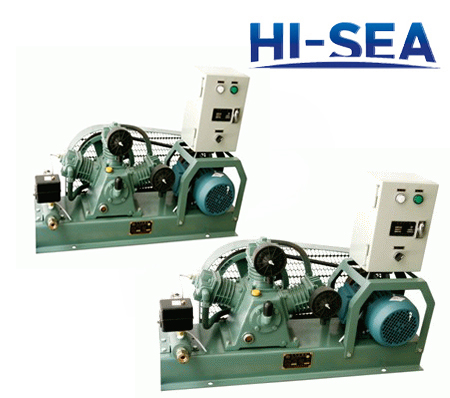

Picture of CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NR,BV,CCS,etc. They can be offered along with marine air compressor. CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor
