Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit
The type of Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit is Single-row,V,W and the secondary compression piston.Its displacement capacity is 3.5~60 m3 / h.The rated pressure is 1.0 Mpa.It is suitable for providing air source for the ship whistle, oil and gas stove and auxiliary equipment. The product has a manual or automatic stop, start and unloading relief function.Low energy consumption,low noise and long service life are its features.Meanwhile,it is easy to maintenance.
HI-SEA has high-tech manufacture and considerate service,which will help decrease customers' operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.
Features:
Easy to maintenance
Small size,light weight,simple structure
Low energy consumption,low noise,long service life
The displacement capacity is 3.5 ~ 60 m3 / h;The rated pressure is 1.0 MPa
The product has a manual or automatic stop, start and unloading relief function
It is suitable for providing air source for the ship whistle,oil and gas stove and auxiliary equipment
Various models of Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit are available:
CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor
CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor
CWF-20/1 Marine Low Pressure Air-cooled Air Compressor
CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor
CVF-6/1 Marine Low Pressure Air-cooled Air Compressor
CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor
Main Technical Parameters:
Model |
Displacement Capacity£¨m3/h£© |
Specified |
Rotating |
Motor Power |
Dimension£¨L¡ÁW¡ÁH£©mm |
Weight£¨kg£© |
|
kW |
HP |
||||||
CZF¡ª3.5/1 |
3.5 |
1.0 |
810 |
0.75 |
1 |
650¡Á390¡Á580 |
58 |
CVF¡ª6/1 |
6 |
930 |
1.1 |
1.5 |
800¡Á390¡Á630 |
75 |
|
CWF¡ª10/1(Vertical type) |
10 |
750 |
1.5 |
2 |
500¡Á400¡Á740 |
85 |
|
CWF¡ª10/1 |
10 |
750 |
1.5 |
2 |
900¡Á400¡Á650 |
93 |
|
CWF¡ª15/1 |
15 |
1000 |
2.2 |
3 |
100 |
||
CWF¡ª20/1 |
20 |
720 |
3 |
4 |
900¡Á410¡Á665 |
138 |
|
CWF¡ª40/1 |
40 |
780 |
5.5 |
7.5 |
1220¡Á560¡Á810 |
260 |
|
CWF¡ª60/1 |
60 |
720 |
11 |
15 |
1340¡Á660¡Á960 |
360 |
(Note:More marine air compressors can be offered according to your special requests.)

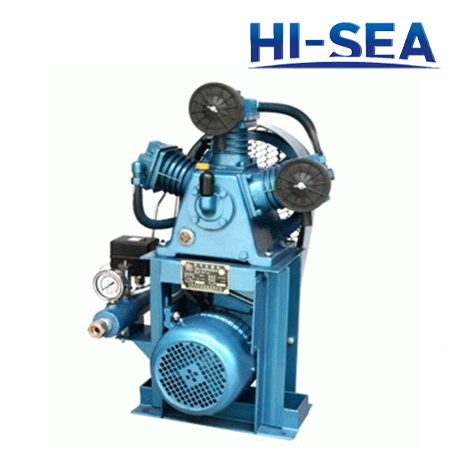

CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor
CWF-10/1 and CWF-15/1 Marine Low Pressure Air-cooled Air Compressor
CWF-20/1 Marine Low Pressure Air-cooled Air Compressor
CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor
CVF-6/1 Marine Low Pressure Air-cooled Air Compressor
CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor
Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
