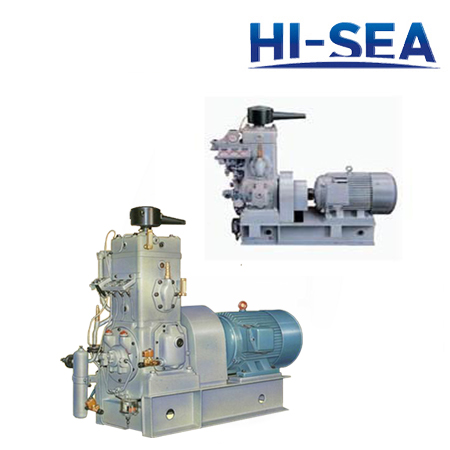

WP Series Marine Air Compressor
[Search Related Products]
WP Series Marine Air Compressor
WP series marine air compressor has perfect automatic control and protection system,like automatic open and stop,automatic discharge,oil pressure protection,hydraulic protection,cooling water temperature protection,cooling water intake water control,etc.It can realize unmanned operation.Our marine air compressor is mainly suitable for shipping industry.
HI-SEA Marine Air Compressor includes the main air compressor,control marine air compressor and emergency marine air compressor. Air cooling marine air compressor and water cooling marine air compressor are available.Our product has high quality.If you have any question,please feel free to contact us directly. Best service will be offered.
Certificates:CCS,ABS,GL,DNV,RINA,etc. They can be offered along with marine air compressor
Specifications of WP Series of Marine Air Compressor(50HZ,380V):
Model |
Capacity |
Discharge pressure (MPa) |
Motor |
Mode of transmission |
Mode of cooling |
Dimension (L*W*H)mm |
Weight(kg) |
|
Power(kw) |
Voltage(V) |
|||||||
WP18L |
18 |
3.0 |
5.5 |
380 |
Direct coupling |
Air cooling |
845กม640กม564 |
66 |
WP25L |
24.5 |
3.0 |
7.5 |
380 |
Direct coupling |
Air cooling |
870กม640กม632 |
67 |
WP32L |
31.5 |
3.0 |
7.5 |
380 |
Direct coupling |
Air cooling |
884กม640กม632 |
67 |
WP250L |
225 |
3.0 |
55 |
380 |
Direct coupling |
Air cooling |
1617กม930กม1085 |
924 |
WP60 |
84 |
3.0 |
18.5 |
380 |
Direct coupling |
Water cooling |
1322กม671กม1051 |
650 |
WP80L |
80 |
3.0 |
15 |
380 |
Direct coupling |
Air cooling |
1310กม780กม830 |
330 |
WP100L |
99 |
3.0 |
20 |
380 |
Direct coupling |
Air cooling |
1362กม880กม1007 |
450 |
WP110 |
91 |
3.0 |
22 |
380 |
Direct coupling |
Water cooling |
1425กม845กม1370 |
970 |
WP135 |
118 |
3.0 |
30 |
380 |
Direct coupling |
Water cooling |
1465กม840กม1370 |
1000 |
WP160 |
141 |
3.0 |
30 |
380 |
Direct coupling |
Water cooling |
1520กม920กม1420 |
1010 |
WP185 |
162 |
3.0 |
37 |
380 |
Direct coupling |
Water cooling |
1520กม920กม1420 |
1000 |
WP220 |
191 |
3.0 |
45 |
380 |
Direct coupling |
Water cooling |
1975กม951กม1639 |
1400 |
WP270 |
248 |
3.0 |
55 |
380 |
Direct coupling |
Water cooling |
1975กม850กม1568 |
1400 |
WP320 |
294 |
3.0 |
63 |
380 |
Direct coupling |
Water cooling |
1975กม951กม1568 |
1400 |
WP370 |
344 |
3.0 |
75 |
380 |
Direct coupling |
Water cooling |
2120กม985กม1598 |
1400 |
1-0.433/60 |
26 |
6.0 |
11 |
380 |
Belt Rotation |
Water cooling |
1170กม700กม1220 |
670 |
CZ-60/30 |
60 |
3.0 |
18.5 |
380 |
Direct coupling |
Water cooling |
1500กม535กม1200 |
900 |
Specifications of WP Series Marine Air Compressor(60HZ,440V):
Model |
Capacity |
Discharge pressure(MPa) |
Motor |
Mode of transmission |
Mode of cooling |
Dimension (L*W*H)mm |
Weight(kg) |
|
Power(kw) |
Voltage(V) |
|||||||
WP18L |
14.3 |
3.0 |
5.5 |
440 |
Direct coupling |
Air cooling |
845กม640กม564 |
66 |
WP25L |
20.0 |
3.0 |
7.5 |
440 |
Direct coupling |
Air cooling |
870กม640กม632 |
67 |
WP32L |
25.0 |
3.0 |
7.5 |
440 |
Direct coupling |
Air cooling |
884กม640กม632 |
67 |
WP250L |
180 |
3.0 |
55 |
440 |
Direct coupling |
Air cooling |
1617กม930กม1085 |
924 |
WP60 |
68 |
3.0 |
18.5 |
440 |
Direct coupling |
Water cooling |
1282กม671กม1051 |
650 |
WP110 |
110 |
3.0 |
30 |
440 |
Direct coupling |
Water cooling |
1425กม725กม1458 |
970 |
WP135 |
142 |
3.0 |
30 |
440 |
Direct coupling |
Water cooling |
1465กม725กม1458 |
1000 |
WP160 |
170 |
3.0 |
37 |
440 |
Direct coupling |
Water cooling |
1465กม840กม1458 |
1100 |
WP185 |
195 |
3.0 |
45 |
440 |
Direct coupling |
Water cooling |
1465กม840กม1458 |
1100 |
WP220 |
230 |
3.0 |
55 |
440 |
Direct coupling |
Water cooling |
1975กม910กม1639 |
1400 |
WP270 |
300 |
3.0 |
63 |
440 |
Direct coupling |
Water cooling |
1975กม910กม1638 |
1400 |
WP320 |
355 |
3.0 |
75 |
440 |
Direct coupling |
Water cooling |
2120กม910กม1598 |
1400 |
WP370 |
415 |
3.0 |
90 |
440 |
Direct coupling |
Water cooling |
2120กม910กม1598 |
1400 |
WP Series Marine Air Compressors
Certificates:
