Marine Vertical High Pressure Water-cooled Air Compressor

Marine Vertical High Pressure Series Water-cooled Air Compressor

Marine vertical high pressure water-cooled air compressor is specially fit for ships.Its type is single-row,vertical,water-cooled,three-stage differential piston and belt drive type.It has characteristics of a compact structure,small size,light weight,high pressure and easy operation,etc.It can be converted into a automatic control unit form according to the requirements of customers.The displacement capacity of this marine air compressor is 0.27~0.43m3/min.The rated pressure is 5.9~14.7MPa.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Characteristics:

Compact structure,small size

High pressure,light weight,easy operation,etc

Main Technical Parameters:

Model	Displacement Capacity	Specified Pressure	Rotating Speed	Motor Power		Dimension(L×W×H）	Weight
Model	m3/ min	MPa	r/min	kW	HP	mm	kg
1-0.27/150	0.27	14.7	1000	7.5	10	555×585×940	210
CZ-0.42/150	0.42	14.7	1500	11	15	620×650×1000	270
CZ-0.43/60	0.43	6.0	1500	11	15	620×650×1000	270

(Note:Marine high pressure water-cooled air compressors can be offered according to your special requests.)

Marine Vertical High Pressure Water-cooled Air Compressor

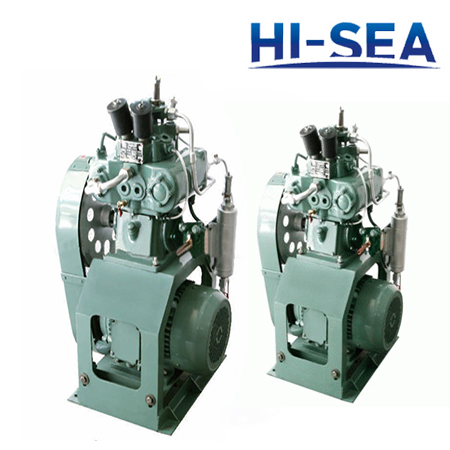

Picture of Marine Vertical High Pressure Water-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor. Marine Vertical High Pressure Water-cooled Air Compressor
