CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor

CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor

CZF series marine low pressure air cooling air compressor is Z type,air cooling and piston type.Its displacement capacity is 10～20m3/h.The rotating speed is 550～1100r/min. The motor power is 1.5～3.0KW.It is mainly used for providing air source for vessels.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.If you are interested in our products,please feel free to contact us directly.

Main Technical Parameters:

Model	Type	Displacement Capacity（m3/h）	Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power（kW）	Dimension（L×W×H）mm
CZF—10/10	Z type,air cooling,piston type	10	1.0	550	1.5	800×390×630
CZF—15/10		15		880	2.2
CZF—20/10		20		1100	3.0

(Note:CZF Series Marine Low Pressure Air cooling Piston Type Air Compressor is suitable for air bottle.More marine air compressors can be offered according to clients’ special requests.)

CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor

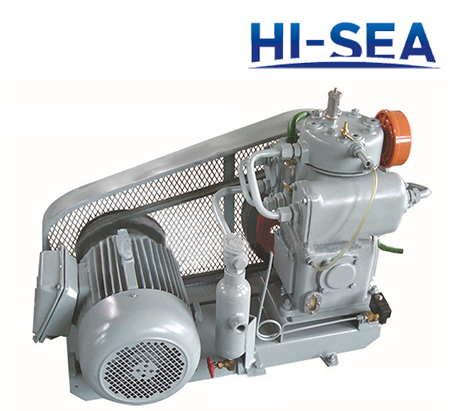

CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor（1）

CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor

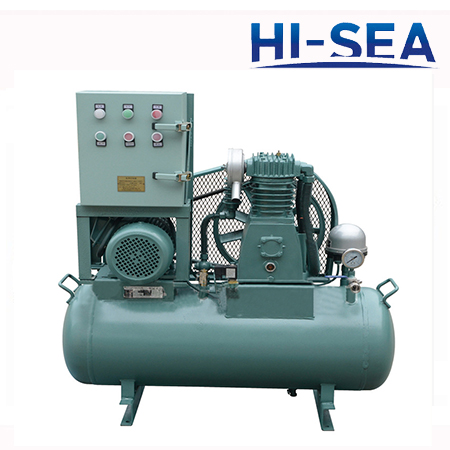

CZF Series Marine Low Pressure Air Cooling Piston Type Air Compressor（2）

Certificates:ABS,GL,NR,BV,CCS,RINA,etc. They can be offered along with marine air compressor.
