Marine Medium Pressure Water-cooled Series Air Compressor

Marine Medium Pressure Series Water-cooled Air Compressor

This marine air compressor is automatic control unit.The displacement capacity is 20~120 m3/h.The rated pressure is 3.0 Mpa. Marine medium pressure water-cooled air compressor is mainly suitable for starting the main engine of ships and various medium-sized diesel engines.Its type has V-type,single-row,double-row,water-cooled and piston type.There are direct connection drive type and belt drive type.It has manual or automatic stop,start and unloading relief function.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Various marine medium pressure water-cooled air compressor as follows are available:

Marine Single-row Medium Pressure Water-cooled Air Compressor

Marine Double-row Medium Pressure Water-cooled Air Compressor

Marine V-type Medium Pressure Water-cooled Air Compressor

Product Features:

Low exhaust temperature,ow noise,reliable operation

Compact structure,high efficiency,light weight,small volume

These functions as follow are available according to clients’ requests:

1. The main and standby machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Main Technical Parameters:

Model	Displacement Capacity		Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power		Dimension（L×W×H）mm	Weight（kg）
	m3/h	m3/ min			kW	HP
CZ—20/30SZK	20	0.34	3.0	960	5.5	7.5	900×600×850	250
CZ—20/30SZK (Belt)				1000			1070×490×810	225
CV-30/30	30	0.5		720	7.5	10	1230×730×690	330
CV-40/30	40	0.67		870	11	15	1230×730×690	340
CV-50/30	50	0.83		970	11	15	1230×730×690	340
CV-90/30	90	1.5		730	22	30	1600×1010×1050	900
CV-120/30	120	2		975	30	40	1600×1010×1050	1000

(Note:Marine medium pressure water-cooled air compressors can be offered according to your special requests.)

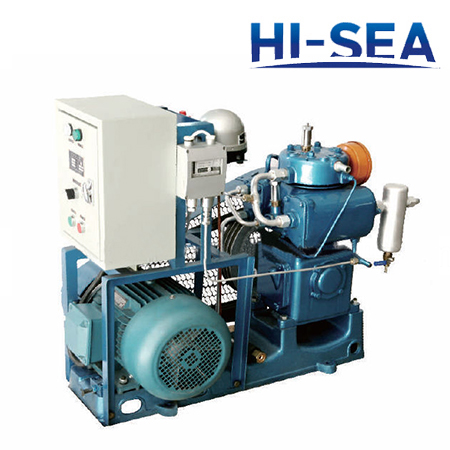

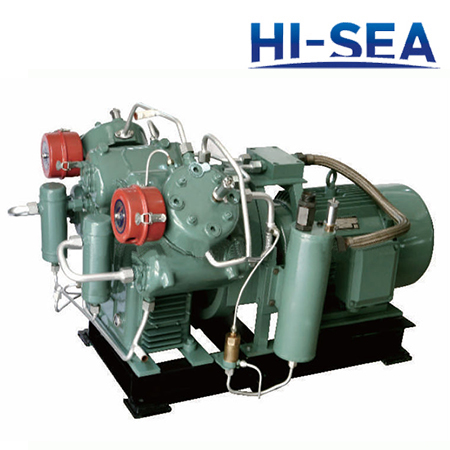

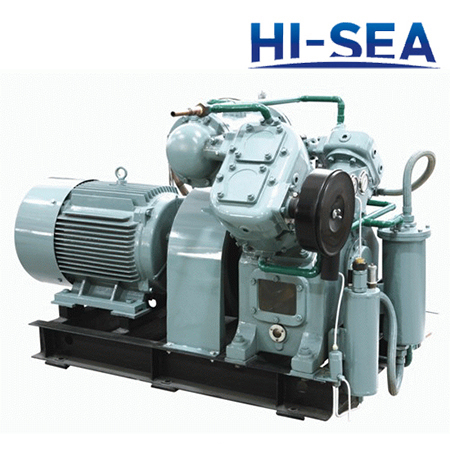

Marine Single-row Medium Pressure Water-cooled Air Compressor	Marine Double-row Medium Pressure Water-cooled Air Compressor	Marine V-type Medium Pressure Water-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
