CZ Series Marine Air-cooled Air Compressor
[Search Related Products]
Product Description
CZ Series Marine Air-cooled Air Compressor is mainly used for providing air source for all kinds of ships.This kind of marine air compressor is air -cooled type.Its driving type is belt driving.We are able to provide high quality marine air compressor.
Our high-tech manufacture and considerate service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.
Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
Main Technical Parameters:
Model |
Type |
Discharge Capacity(m³/h) |
Discharge pressure(MPa) |
Rotating Speed (r/min) |
Motor Power (kw) |
Overall Size (L*W*H)mm |
Weight(kg) |
CZ-10/30F |
Single row, vertical,2stage compression piston type |
10 |
3.0 |
500 |
3 |
970กม480กม750 |
150 |
CZ-10/30F |
20 |
3.0 |
1000 |
5.5 |
180 |
||
CZ-10/30FZK |
10 |
3.0 |
500 |
3 |
150 |
||
CZ-20/30FZK |
20 |
3.0 |
1000 |
5.5 |
180 |
(Note:Apply to 32m³ air bottle.Our Marine Air Compressor can be customized according to clients' special requirements.Different configurations are available.)

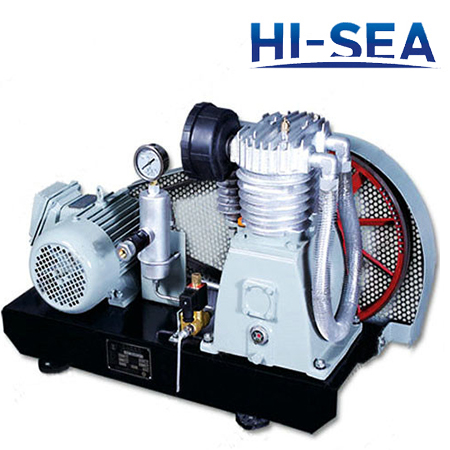

Picture of CZ Series Marine Air-cooled Air Compressor
